Lighting accounts for roughly 15% of the average home's electricity bill — and retrofitting LED recessed fixtures is one of the highest-return upgrades available for that number. Our team has worked through the full process of how to install recessed lighting in an existing ceiling across dozens of residential projects, spanning drywall, plaster, and tongue-and-groove ceilings with wiring configurations that ranged from straightforward to genuinely difficult. The results consistently outperform every other single-day lighting upgrade in terms of ambiance and long-term energy footprint. For a deeper look at ceiling lighting options across every category, our lighting section is the right starting point.
The core misconception our team hears most often is that this project requires opening the ceiling. With modern remodel cans, it doesn't. Retrofit housings are engineered specifically for occupied homes where above-ceiling access is impractical — the can feeds through a circular cutout and spring clips lock it firmly against the drywall face from below. No attic access needed at any stage.
The real complexity lives in the planning phase, not the mechanical execution. Ceiling type, joist depth, insulation status, and feed-point proximity each shape the approach. Once those variables are mapped, the mechanical work moves quickly. Our team typically finishes a six-can install — including all wiring runs — in a single working day.
Contents
Every poor recessed lighting outcome our team has audited came down to a planning failure, not a mechanical one. The hole saw and wire work are straightforward — the decisions made before anything gets cut determine whether the finished result looks considered or accidental.
Our team defaults to 4-inch cans for kitchens, bathrooms, and task-focused areas, and 6-inch cans for living rooms, hallways, and open-plan spaces. The standard spacing rule — divide ceiling height in half — is reliable for ambient applications. An 8-foot ceiling calls for fixtures roughly 4 feet apart. Our installs consistently validate this as a solid baseline.
Dimmer compatibility is non-negotiable for any living or dining space. Our team covered the full matching process in our guide on installing a dimmer switch for LED lights — the interaction between LED driver type and dimmer technology is the leading cause of flicker and audible hum in otherwise correct installations.
A stud finder with AC detection mode runs twice before any hole is cut: once for joists, once for live wires and pipes running perpendicular. Every obstruction gets marked with painter's tape. Feed-point selection — which existing junction box or ceiling fixture to tap — matters as much as where the cans land. Shorter wire runs mean simpler fishing operations.
In homes with attic access above the target ceiling, wiring is fast. In fully finished ceilings, every run is a blind fish operation. Our team treats feed-point proximity as a hard planning constraint — a two-foot adjustment to the fixture layout sometimes eliminates a difficult 12-foot fish run entirely.
Pro insight: Before tapping an existing circuit, verify the total load headroom. Ten 10W LED cans on a 15A circuit draw under 7A — comfortable clearance. The problem comes from adding those cans to a circuit already loaded with other continuous draws. Always confirm what else shares the breaker.
Getting how to install recessed lighting in an existing ceiling right is half about sequence and half about toolset. The right combination turns a potential full-day struggle into a clean half-day job.
Our team's standard kit for a retrofit recessed install:
The right-angle drill is the most overlooked tool in this kit. Running wire through blocking in a finished ceiling cavity is nearly impossible with a standard drill orientation. The right-angle attachment converts a 45-minute wrestling match into a clean 5-minute boring pass.
Our team cuts all fixture holes before pulling any wire. With every opening accessible, a flexible glow rod threads from can position to can position through the ceiling bay, with Romex taped to the rod tip for retrieval. This method works efficiently in open ceiling bays with no obstruction.
Blown-in insulation changes the approach. Loose fill resists glow rods — a weighted chain drops through it more reliably. Dense-pack cellulose or fiberglass is harder still; vacuuming a clear path at each can hole before fishing is the practical workaround our team uses consistently.
Smart switching architecture is worth planning at this stage before wire runs are committed. Running all cans on a single switched feed suits whole-room smart switch control. Individual switched legs suit per-zone dimming. Our breakdown on setting up smart light bulbs without a hub walks through how wiring architecture intersects with smart lighting system choices.
Our team recommends recessed lighting strongly for most living spaces — but not unconditionally. Understanding where it earns its place and where it falls short prevents expensive regret after the holes are cut.
Recessed lighting is the correct answer for any low-clearance room where pendant or surface fixtures feel intrusive. Kitchens, hallways, and bathrooms all benefit from the clean ceiling plane it provides. Integrated LED units rated at 25,000 to 50,000 hours mean most home users go well over a decade without a single lamp change — a maintenance advantage no surface-mounted fixture category comes close to matching.
Task lighting is another strong suit. The directional downward throw of a properly positioned recessed can minimizes shadows on countertops, desks, and workbenches in ways that omnidirectional sources can't replicate.
A single row of downlights creates pools of illumination rather than even ambient wash. Pairing recessed cans with LED strip lights along the ceiling perimeter solves this effectively, adding a soft indirect ambient layer — but it adds cost and installation complexity that some projects can't absorb.
Thermal performance is a real concern. Every recessed can is a penetration in the ceiling's thermal and air barrier. In climates with significant heating or cooling loads, improperly sealed cans create measurable energy loss. IC-rated airtight (ICAT) fixtures address this directly. Non-IC cans in insulated ceilings don't — and aren't code-compliant in that application.
| Factor | Recessed Lighting | Surface / Pendant Fixtures |
|---|---|---|
| Retrofit install complexity | Moderate — ceiling penetrations + wire fishing required | Low — replaces at existing junction box |
| Aesthetic impact | High — architectural, disappears into the ceiling plane | Medium — visible fixture, can serve as design element |
| Ambient light coverage | Moderate — directional, benefits from layering | High — omnidirectional spread from a single point |
| Thermal envelope integrity | Lower — penetrations present (mitigated by ICAT cans) | Strong — no ceiling penetrations |
| Long-term maintenance | Very low — integrated LEDs rated 25,000–50,000 hrs | Low to moderate — periodic lamp replacement |
| Dimmer compatibility | Excellent with matched ELV or trailing-edge dimmers | Good — broader driver variety available |
| Upfront cost per point (installed) | $20–$60 per can | $15–$200+ per fixture |
The fixture selection decision comes down to two primary questions: IC rating and housing architecture. Getting both right eliminates the most common code failures and long-term performance problems from the start.
IC (insulation contact) rated fixtures are sealed and thermally protected for direct contact with insulation. Non-IC cans require a 3-inch clearance from insulation on all sides — a condition that's nearly impossible to guarantee in a blind retrofit. Our position is unambiguous: use IC-rated, airtight (ICAT) fixtures in any ceiling where insulation is present or could be added later. The price premium is typically $5 to $10 per can. The alternative — fire risk and NEC code violation — isn't a trade-off worth considering.
The U.S. Department of Energy's lighting guidance reinforces this: airtight fixtures in insulated ceiling assemblies make a measurable contribution to reducing whole-home energy losses through the building envelope — not just the fixture's own wattage savings.
Warning: Non-IC cans installed in insulated ceilings violate NEC code and are a documented fire hazard — trapped heat around the fixture housing is the failure mode. Always use IC-rated fixtures. This is not a judgment call.
Retrofit-bulb housings accept standard BR30 or PAR30 LED lamps and allow bulb swapping. Integrated LED fixtures have a built-in driver and light engine with no socket and no lamp changes. Our team recommends integrated LED for all permanent installations. Lumen-per-watt efficiency is higher, dimmer compatibility is more predictable (most integrated units ship with a manufacturer-certified compatible dimmer list), and total cost of ownership over a 15-year lifespan is lower.
Retrofit-bulb housings make sense in exactly one scenario: spaces requiring frequent color temperature changes, like a photography studio or professional workroom. For every other application, integrated is the correct choice.
Rooms with existing ceiling fans require an additional layer of consideration. Our breakdown on adding a light kit to a ceiling fan covers when fan-integrated lighting is the better answer than adding dedicated recessed cans to the same room — the spacing and visual competition dynamics are worth understanding before committing.
Most DIY recessed lighting errors are placement errors — and nearly all of them require new drywall work to correct after the fact. Getting layout right before cutting is the only reliable prevention strategy.
Placing fixtures too close to walls is the single most frequent mistake our team encounters in post-install audits. A 6-inch can within 12 inches of the wall face creates a half-moon shadow pattern that reads immediately as wrong. Standard downlights need at least 18 inches of wall clearance. Wall-wash fixtures are a separate product category designed for close placement — substituting one for the other produces predictably bad results.
Rigid symmetrical grids look wrong in most rooms because rooms aren't symmetrical in use. Furniture positions, focal points like fireplaces and islands, and architectural features like soffits and beams all require fixture placement driven by function rather than geometry. Our team marks all furniture outlines in painter's tape on the ceiling before finalizing any cuts — it takes 20 minutes and eliminates the most expensive category of installation errors.
Circuit overloading is the most dangerous wiring mistake — and the easiest to prevent by running the load calculation before any work starts. Most residential lighting circuits are rated at 15A. Ten 10W LED cans draw roughly 0.83A each, leaving generous headroom on a dedicated circuit. The problem arises when those cans are added to a circuit already carrying significant continuous loads from other fixtures or devices.
NEC box fill is the most commonly missed code requirement. Each can's built-in junction box has a conductor fill limit. Daisy-chaining too many wire segments through a single box exceeds that limit — which inspectors flag at rough-in inspection. Our reference on choosing the right wire nuts and connectors covers the connector options that minimize box fill while maintaining secure, code-compliant connections.
Permits are mandatory for any work involving new wiring runs. The inspection process is fast, and a signed-off permit protects resale value and insurance coverage in ways a permit-free install simply does not.

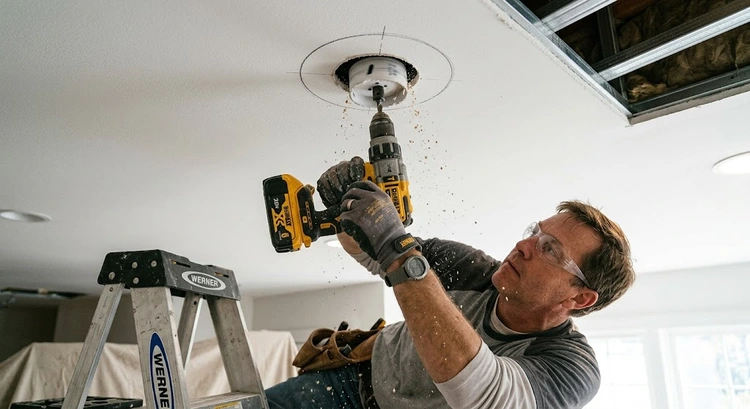

Yes — retrofit (remodel) cans are engineered specifically for this scenario. The housing feeds through the ceiling cutout from below, and internal spring clips extend inside the cavity to lock the fixture against the drywall face. No above-ceiling access is required at any point in the process. Our team installs the majority of recessed lighting this way in occupied homes.
Our standard formula is one 6-inch can per 20 to 25 square feet of floor area for general ambient lighting. A 200 sq ft living room needs 8 to 10 cans for comfortable coverage. Task-intensive areas like kitchens run closer to one can per 15 sq ft. Ceiling height, furniture arrangement, and any supplementary lighting sources all adjust the final fixture count.
Older leading-edge (TRIAC) dimmers designed for incandescent loads frequently cause flicker and audible hum with LED drivers. Integrated LED recessed fixtures ship with a manufacturer-specified list of compatible dimmers. Our team always replaces existing dimmers with a matched trailing-edge or ELV dimmer rated for the full LED wattage of the circuit — this eliminates compatibility problems across the entire dimming range.
 |
 |
 |
 |
