Last spring, you walked into a friend's living room and stopped cold. The ceiling glowed with a soft amber ribbon — no fixtures, no harsh bulbs, just clean indirect light wrapping the entire perimeter. She had done it herself on a Saturday afternoon with a $40 kit from Amazon. That moment is why learning how to install LED strip lights on a ceiling has become one of the most-searched home improvement projects in the country. Browse the full lighting section on Linea for more guides like this one.
LED strip lights are flexible printed circuit boards embedded with surface-mounted LEDs. They run on low-voltage DC power — typically 12V or 24V — supplied by an external driver. According to the U.S. Department of Energy, LED lighting uses at least 75% less energy than incandescent bulbs and lasts up to 25 times longer. Those numbers explain the shift you're seeing in living rooms, bedrooms, and kitchens across the country.

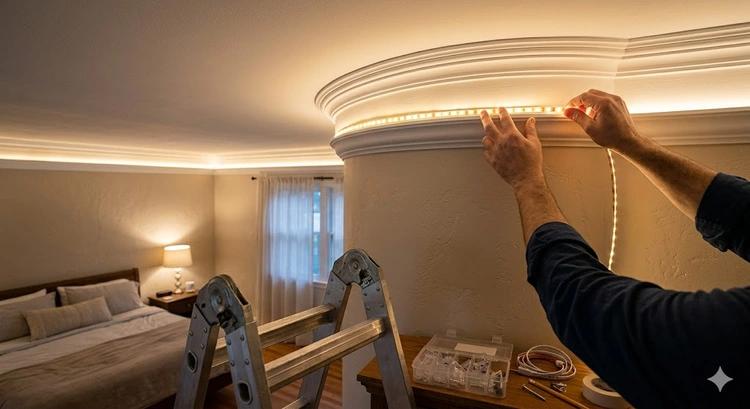

Ceilings offer the ideal surface for this technology. A strip tucked into a cove or run along a perimeter produces soft, diffused light with no visible source. The effect reads as architectural — not decorative. Your ceiling type determines the exact installation method, but the core steps for how to install LED strip lights on a ceiling remain consistent across flat, tray, vaulted, and drop-tile surfaces.
Contents
Traditional ceiling fixtures rely on point-source light. A bulb sits in one location, casts a cone downward, and creates contrast and shadow. LED strip lights work on an entirely different principle. They distribute dozens — sometimes hundreds — of individual diodes across a continuous flexible board, producing even, shadow-free illumination across the full run length. The strip itself measures 8–12mm wide and ships in rolls of 16.4 feet (5 meters). You cut it at marked intervals — every 2, 3, or 4 LEDs depending on the product — to match your exact ceiling dimensions.
The two dominant types are single-color and RGB or RGBW multicolor. Single-color options cover a range from warm white (2700K) to daylight (6500K). For ceiling applications, most installers choose warm white (2700K–3000K) in living spaces and cool white (4000K–5000K) in kitchens and home offices. A smart variant, such as those reviewed in Linea's guide to the best smart LED light bulbs, adds app or voice control — useful when you want your ceiling strip integrated into a broader home automation system.
Two voltage standards dominate the consumer market: 12V and 24V. The 24V option runs cooler and handles longer continuous runs without voltage drop — a critical advantage when you're wrapping a 20-foot ceiling perimeter. LED density, measured in LEDs per meter, determines both brightness and uniformity. Low-density strips (30 LEDs/m) show visible individual hotspots on close inspection. High-density strips (60–120 LEDs/m) produce seamless, unbroken light. For ceiling use, 60 LEDs/m is the practical minimum. Anything below that number produces a dotted appearance rather than a continuous glow.
Always use 24V strips for runs longer than 15 feet — 12V systems develop visible dimming at the far end of long runs, and no controller setting can compensate for voltage drop.

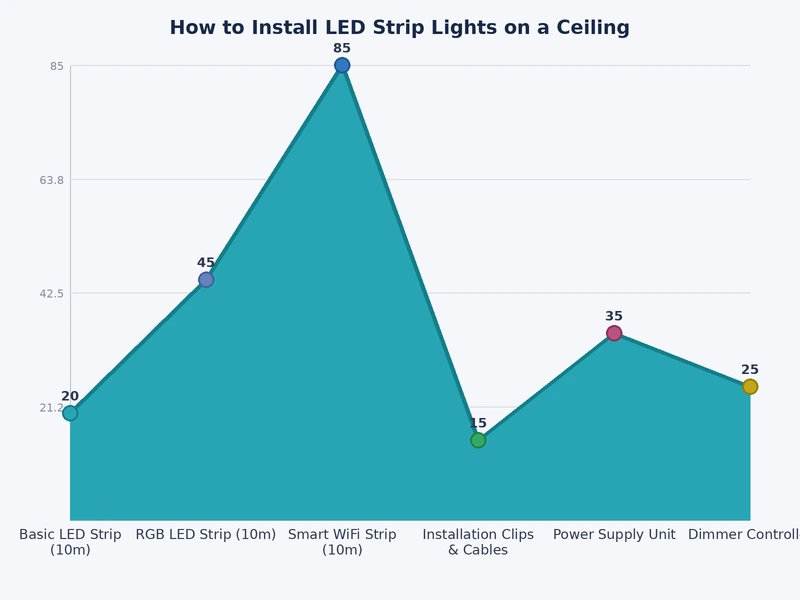

The upfront investment surprises most first-time buyers. The strip itself is often the least expensive component. The power supply, controller, connectors, and aluminum channel diffusers account for the bulk of your spend. Below is a realistic cost breakdown for a standard 20-foot perimeter installation in a 12×14-foot room.
| Component | Budget Option | Mid-Range | Premium |
|---|---|---|---|
| LED Strip (20 ft, 60 LEDs/m, 24V) | $18–$25 | $30–$45 | $55–$80 |
| Power Supply (24V, 60W+) | $12–$18 | $20–$30 | $35–$55 |
| Aluminum Channel + Frosted Diffuser | — | $20–$35 | $45–$70 |
| Controller / Dimmer | $8–$12 | $15–$25 | $30–$50 |
| Connectors, Wire, and Clips | $5–$8 | $10–$15 | $15–$25 |
| Total (DIY) | $43–$63 | $95–$150 | $180–$280 |
The aluminum channel deserves special attention. It mounts flush against the ceiling, holds the strip in a fixed position, and the frosted diffuser softens visible LED dots into a smooth bar of light. Skipping the channel saves $20–$35 but typically produces a less finished result. For tray ceilings and cove installations, the channel is effectively mandatory — it conceals the strip and gives the reflected light something clean to bounce off.
If you hire an electrician to wire the power supply directly into a junction box — rather than using a plug-in driver routed along the baseboard — budget an additional $80–$150 for labor. The plug-in approach keeps the job fully DIY and is entirely adequate for most residential installations.

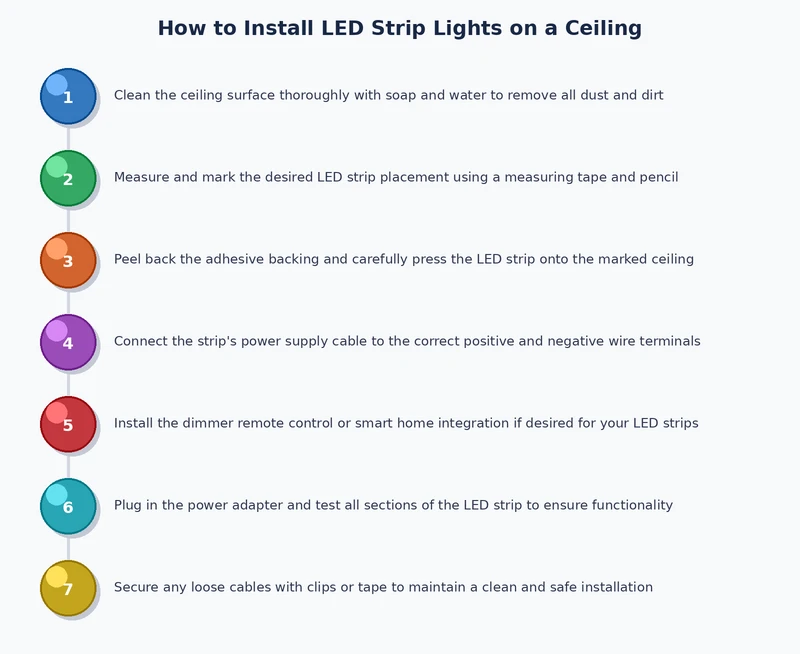

Approach this in strict sequence. Rushing surface preparation or skipping the test-fit step causes the majority of problems that show up in the first week after installation.
Gather everything before you start. You need: a tape measure, a pencil, isopropyl alcohol (70% or higher), a lint-free cloth, scissors or a craft knife, the LED strip, the power supply, a compatible controller, solderless push-in connectors or a soldering iron, and mounting clips or an aluminum channel. A stud finder is useful if you plan to route low-voltage wire through the wall cavity. A non-contact voltage tester is essential if you're connecting directly to a junction box — confirm the circuit is dead before touching any wire.
Wipe the entire mounting surface with isopropyl alcohol. Let it dry completely — at least three minutes. The 3M adhesive backing on most strips requires a clean, dry, room-temperature surface to reach full bond strength. Cold surfaces below 60°F and dusty or freshly painted drywall are the two leading causes of strip detachment in the first month.
Dry-fit the strip before peeling a single inch of adhesive backing. Measure and mark cut points in pencil. Test corner-to-corner continuity using solderless L-shaped connectors. This step catches measurement errors before they cost you usable strip length — and it shows you exactly where each connector lands before you're committed.
Never cut between LED dots — always cut directly on the marked copper pads. Cutting in the wrong place severs the circuit and makes that entire section non-functional with no repair possible.
Peel the adhesive backing from a short section at a time — never the full length at once. Press firmly along the entire surface, holding steady pressure for 10–15 seconds per foot. At corners, use a 90-degree solderless connector rather than bending the strip. Bending introduces micro-fractures in the copper traces that cause dead sections within weeks of installation.
Connect the strip's terminal end to the controller's output. Connect the controller's input to the power supply output. Plug the power supply into the outlet or connect it to the junction box. Power on the strip before securing anything permanently. Walk the full length. Check for dead zones, uneven brightness, or flickering. Address any issues now — adhesive cures firm within 24–72 hours, and troubleshooting gets significantly harder once everything is locked in place.
For tray ceilings, position the strip inside the upper ledge aimed at the ceiling above. The light bounces off the upper surface and diffuses downward as indirect illumination. This is the same principle that makes under-cabinet lighting so effective — a technique described in detail in Linea's under-cabinet lighting installation guide.
The same product produces dramatically different results depending on the room, the ceiling height, and the surface color the light reflects off. Managing your expectations before installation prevents disappointment after.
In a standard 8-foot ceiling living room, a warm white perimeter strip at 60 LEDs/m produces approximately 200–350 lux of indirect ambient light — enough for atmosphere and general movement but not close-focus task work. Pair it with existing overhead fixtures to create a layered lighting scheme. A single strip as the only light source reads dim and flat in most living rooms.
Bedrooms are the single most rewarding application. Tray ceilings conceal the strip entirely inside the recessed ledge, and the reflected glow wraps the upper ceiling in a continuous halo effect. The result reads as custom architectural detail, not a DIY project. A dimmable warm white (2700K) strip on a smart controller lets you drop intensity to 10% for a sleep-compatible glow that eliminates the harsh overhead switch.
Kitchens demand higher color temperature (4000K–5000K) and more raw output. A single perimeter strip rarely provides sufficient illumination for food prep on its own. Combine ceiling strips with countertop-aimed under-cabinet strips for a complete layered system. In home offices, ceiling strips serve effectively as bias lighting — raising the ambient light level around your monitor to reduce eye strain during extended work sessions.
In rooms with dark-painted ceilings, expect significant lumen absorption — switch to a higher-density strip (90–120 LEDs/m) to compensate. A white ceiling reflects roughly 80% of incident light; a charcoal ceiling reflects under 10%.
Even careful installations encounter issues. Most problems trace back to three root causes: adhesion failure, power delivery problems, or connection errors. Identify the category first — then the specific fix becomes straightforward.
The adhesive bond weakens when the surface wasn't fully clean at installation, when the room runs consistently hot above 80°F, or when the strip exceeds the weight capacity of the tape on a textured surface. The repair is direct: remove the fallen section, clean the surface again with isopropyl alcohol, and remount using supplemental mounting clips spaced every 12 inches. Clips are inexpensive and significantly more reliable than adhesive alone on textured drywall, plaster, or any surface with residual paint gloss.
Flickering almost always points to a loose connection or an undersized power supply. Check every push-in connector along the full run. A 30W power supply cannot reliably drive a 35W strip — the driver runs at full load, overheats, and throttles output erratically. Calculate your total wattage before purchasing the driver, and build in at least a 20% headroom buffer.
Dead zones — sections that simply don't illuminate — result from a bad cut, a damaged copper trace, or a failed LED cluster. Locate the dead section precisely by working from the power supply outward. Cut the dead segment out at the nearest intact copper pad on both sides and rejoin the run with a solderless connector. Most strips support seamless mid-run repair without replacing the entire length.
Color inconsistency in RGB strips points to a controller compatibility issue. Some third-party controllers truncate the PWM signal and produce inaccurate color mixing — particularly noticeable at low dimming levels. Match the controller to the strip manufacturer's recommended protocol, or replace it with the controller included in the original kit.
LED strips carry rated lifespans of 25,000–50,000 hours, but real-world longevity depends heavily on heat management and routine maintenance. Neglecting both cuts actual service life significantly below the manufacturer's rating.
Ceiling-mounted strips collect dust on the diffuser surface and inside the aluminum channel. Dust acts as thermal insulation, trapping heat against the LED diodes and accelerating lumen depreciation. Clean every three to four months. Use a soft-bristle brush attachment on a vacuum set to low suction. Wipe diffuser surfaces with a dry microfiber cloth. Never apply liquid cleaners directly to exposed strip circuit boards — moisture infiltrates solder joints and causes corrosion failures that aren't visible until sections begin to dim or flicker weeks later.
Touch the aluminum channel after the strip has run continuously for 30 minutes. It should feel warm — not hot. Consistent surface temperatures above 140°F (60°C) indicate inadequate heat dissipation. Add thermal tape between the strip and the channel floor, or reduce operating brightness by 20%. Individual LED clusters dim noticeably before they fail entirely. When one section drops visibly below the brightness of the surrounding run, replace that section before the degraded diodes create additional strain on adjacent clusters.
Yes, but adhesive alone is insufficient on heavy texture. Use supplemental mounting clips spaced every 10–12 inches in addition to the backing tape. Alternatively, mount an aluminum channel along the smooth upper face of a cove or ledge rather than directly onto the textured surface — the channel screws into the structure and holds the strip independent of adhesive.
Not for plug-in installations. Most ceiling LED strip setups use a low-voltage driver that plugs into a standard 120V outlet — the driver converts the voltage, and you never touch line current. If you want the driver hardwired into a junction box for a cleaner look, hire a licensed electrician for that one step. The strip installation itself remains DIY from that point forward.
On a 12V system, keep each continuous run under 16 feet (5 meters) to avoid voltage drop. On a 24V system, you can safely run up to 32 feet (10 meters) from a single power feed. For longer perimeters, inject power at both ends of the strip from the same driver using parallel wiring — this eliminates dimming at the far end without requiring a second power supply.
The 24V system is superior for ceiling perimeters longer than 15 feet. It carries current more efficiently, runs cooler, and maintains consistent brightness across longer runs. The 12V system works well for short accent runs and under-cabinet applications where total length stays under 10 feet. For full-room ceiling installations, default to 24V.
Yes, with limitations. You can connect multiple strips from the same product line using compatible solderless connectors or by soldering. The total wattage of all connected sections must not exceed your power supply's rated output. Keep each powered run within the maximum length specified for your voltage — exceeding that limit produces visible brightness drop even when the power supply has sufficient wattage.
Single-color strips use a PWM dimmer controller — either a wall-mount dimmer switch or an inline controller. RGB and RGBW strips require an RGB controller, available in infrared remote, RF remote, and Wi-Fi app-enabled variants. Smart controllers integrate with Amazon Alexa, Google Home, and Apple HomeKit. Set your controller to the strip's matching channel count: a 3-channel controller for RGB, a 4-channel for RGBW.
The 3M adhesive backing on most strips bonds firmly to paint and can pull surface layers when removed aggressively. To remove without damage, use a heat gun or hair dryer set to low heat — 30 seconds of gentle warmth softens the adhesive and allows clean peeling. Work slowly, pulling the strip back at a low angle rather than straight off the surface. Any remaining adhesive residue clears with isopropyl alcohol.
Quality strips from reputable manufacturers carry L70 ratings of 25,000–50,000 hours — meaning they maintain at least 70% of initial brightness for that duration. At 8 hours of daily use, 25,000 hours equals roughly 8.5 years. Heat is the primary accelerant of lumen depreciation: every 10°C increase in operating temperature roughly halves effective lifespan. Proper aluminum channel mounting and routine dust removal are the two most reliable ways to reach the full rated lifespan.
The strip costs $40 — the surface prep, the right voltage, and the patience to test before you peel is what separates a ceiling that looks professional from one that falls down in a month.
 |
 |
 |
 |
