How to Install a Dimmer Switch for LED Lights

The overhead light in the living room was the aggressive, flat kind — the sort that flattens every shadow and makes a space feel like a waiting room. After replacing incandescent bulbs with LEDs, adding a dimmer seemed like a simple fix. Then came the flicker, the audible buzz from the fixture, and LEDs that refused to drop below 40% no matter how far the slider moved. Understanding how to install a dimmer switch for LED lights correctly — including compatibility verification and trim calibration — is what separates a clean, silent install from a frustrating one. Linea's lighting guides cover the full spectrum of home lighting upgrades, and this one walks through the entire dimmer process from wire identification to post-install adjustment.

LED dimmers operate on fundamentally different principles than the incandescent dimmers still found in millions of homes. Traditional TRIAC-based phase-cut dimmers were designed for resistive loads. Modern LED bulbs contain internal switching-mode drivers that convert AC mains to low-voltage DC — and many of those drivers interact unpredictably with leading-edge phase cutting, producing the flicker and buzz that frustrate first-time installers.

The fix is systematic, not complicated. Confirm bulb-dimmer compatibility before buying, wire the switch correctly in sequence, calibrate the low-end trim, and the installation runs silently for years. The wiring itself is accessible to any careful DIYer. What trips people up is the compatibility layer, not the physical work.

Why LED Dimmers Behave Differently Than Traditional Switches

Phase-Cutting Technology and LED Drivers

Standard residential dimmers work by chopping the AC sine wave — they "fire" the TRIAC partway through each 60Hz half-cycle, delivering a reduced average voltage to the load. Incandescent filaments are purely resistive and dim proportionally regardless of where that cut lands. LED bulbs are not resistive. Their internal switching-mode power supplies see a mangled waveform and attempt to compensate, often producing current spikes, audible switching noise, and unpredictable output at low dim levels.

According to Wikipedia's overview of dimmer technology, the proliferation of electronic low-voltage (ELV) loads has driven the development of trailing-edge dimmers specifically engineered to control LED and other switching-supply loads. The key distinctions:

• Leading-edge (forward-phase) dimmers: Legacy TRIAC design. Designed for incandescent and halogen. Some LEDs tolerate them, but compatibility must be confirmed — never assumed.
• Trailing-edge (reverse-phase) dimmers: MOSFET or IGBT-based. Designed for ELV loads. Better match for most contemporary LED drivers.
• Smart dimmers (Lutron Caseta, Leviton Decora Smart): Adaptive dimming technology with neutral wire support and broad, manufacturer-tested LED compatibility lists published online.

Minimum Load Requirements

Every dimmer carries a minimum load specification — often 25W to 40W for older models. A single 9W LED bulb falls well below that threshold. Below minimum load, dimmers ghost-glow (stay faintly lit when switched off), flicker at the bottom of the range, or fail to reach a true off state.

• Check the minimum wattage on the dimmer spec sheet before purchasing — it is not always printed on the front of the packaging.
• LED-specific dimmers often carry a 0W or 10W minimum. Specify these for single-fixture circuits.
• Multi-bulb circuits — a six-can recessed layout, for instance — are significantly less likely to encounter minimum load issues.
• Maximum load matters equally. Total bulb wattage on the circuit must stay at or below 80% of the dimmer's rated maximum for continuous operation without thermal stress.

Pro Tip: Never assume an LED bulb is dimmable. The packaging must explicitly state "dimmable" — non-dimmable LED drivers will flicker severely, fail prematurely, or burn out when connected to a dimmer circuit.

Benefits and Trade-offs of Dimmable LED Lighting

Energy Use and Bulb Life Gains

Dimming LEDs reduces power consumption roughly proportionally with output. Running a fixture at 70% output delivers approximately 30% energy savings on that circuit. More importantly, LED drivers operating under reduced thermal load see extended service life. Capacitors and inductors — the components that fail first in switching-mode power supplies — degrade primarily from heat. A circuit running consistently at 60–80% output rather than 100% can meaningfully extend driver lifespan beyond the rated 25,000–50,000 hours printed on the box.

Real Drawbacks Worth Knowing

The benefits are real and well-documented. The limitations deserve equal attention before committing to an install:

For lighting projects that extend beyond single switches, the guide on how to install LED strip lights on a ceiling covers flexible LED systems that pair well with PWM-based and trailing-edge smart dimmers.

When Installing a Dimmer Makes Sense — and When It Doesn't

Fixtures and Rooms That Benefit Most

Dimmers deliver the highest return in spaces where lighting function shifts across different activities throughout the day:

• Living rooms and dining areas: The canonical use case. Full output for cleaning and reading, 30–50% for television and entertaining. A single $25 dimmer transforms the room's utility.
• Primary bedrooms: Low-output evening lighting at 2700K or lower supports circadian wind-down — a practical physiological benefit, not marketing language.
• Home offices: Recessed downlights or track fixtures benefit from adjustable output during video calls versus focused screen work at full brightness.
• Ceiling fan light kits: Most fan fixtures take standard E26 dimmable LED bulbs. Confirming compatibility before adding a dimmer is the same process — see the guide on adding a light kit to a ceiling fan for fixture-specific details.
• Dining room chandeliers: Multiple-bulb circuits at higher aggregate wattage rarely have minimum load issues and benefit substantially from full dimming range.

Situations Where a Dimmer Adds No Value

• Utility spaces — garages, laundry rooms, and mechanical rooms where full output is always required and never adjusted.
• Circuits with non-dimmable integrated LED fixtures. The driver is fixed in the fixture — a dimmer upstream cannot override it.
• Fluorescent fixtures without a dimmable ballast. Standard magnetic ballasts are incompatible with residential dimmers.
• Any circuit controlling a motor load — garbage disposals, exhaust fans, refrigerators. Dimmers are rated for lighting only.

Warning: Never install a dimmer on a circuit controlling a garbage disposal, bathroom exhaust fan, or any motor-driven appliance. Applying a dimmer to a motor load causes overheating, creates a fire hazard, and will void the dimmer warranty immediately.

How to Install a Dimmer Switch for LED Lights: Step-by-Step

Tools and Materials

• LED-compatible dimmer switch (verify against bulb manufacturer's compatibility list)
• Flathead and Phillips screwdrivers
• Non-contact voltage tester
• Needle-nose pliers
• Wire stripper
• Wire nuts or push-in connectors (most dimmers include these)
• Electrical tape
• Smartphone flashlight or headlamp for working in the box

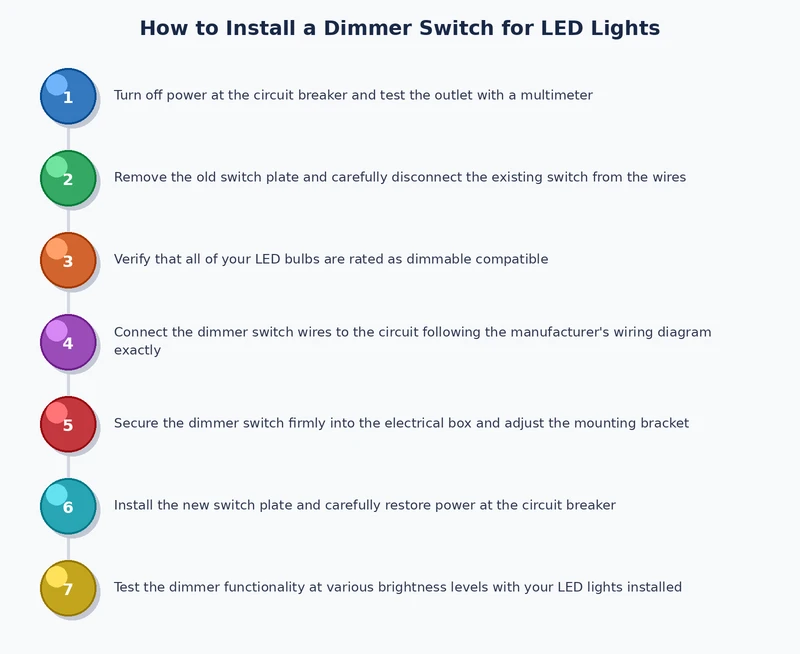

Wiring Procedure

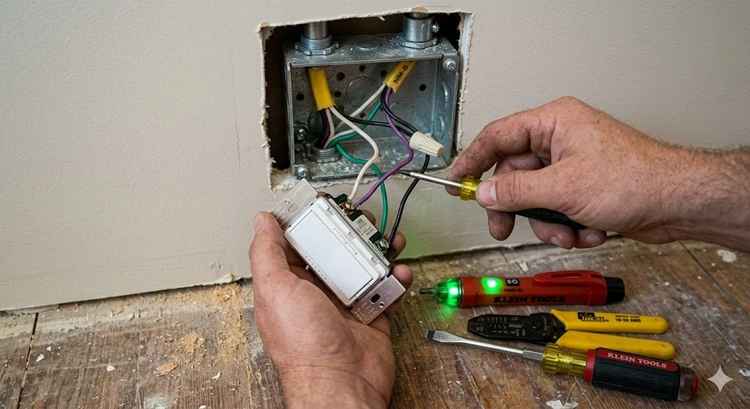

1. Kill power at the breaker. Locate the correct breaker and switch it off. Do not rely on the existing switch to isolate the circuit. Confirm the circuit is dead with a non-contact voltage tester at the existing switch terminals before touching any wires.
2. Remove the cover plate and pull the switch. Unscrew the wall plate, then remove the two mounting screws holding the switch to the electrical box. Pull the switch out carefully — wires are usually just long enough to work with.
3. Photograph the wiring before disconnecting anything. This is the single most useful step for troubleshooting. A clear photo of the existing wiring eliminates guesswork when connecting the new dimmer.
4. Identify the wires. Standard residential wiring uses black (hot), white (neutral or sometimes switched hot in switch loops), and bare copper or green (ground). In homes wired before the mid-1980s, color conventions may not hold — use the photo and a continuity tester to confirm wire function if uncertain.
5. Disconnect the old switch. Loosen terminal screws or remove wire nuts. Do not cut conductors shorter than necessary — work with the existing pigtail lengths to preserve future flexibility.
6. Connect the dimmer's ground wire first. Attach the dimmer's green or bare copper lead to the ground wire in the box using a wire nut. Grounding is non-negotiable — do not skip this step regardless of what the old switch had.
7. Connect line and load conductors. Single-pole dimmers have two leads — some are labeled LINE and LOAD, others are interchangeable (check the manufacturer's instruction sheet). Connect to the hot conductor from the panel and the switched hot going to the fixture respectively.
8. Connect neutral if the dimmer requires it. Smart dimmers and many modern LED dimmers need a neutral for their internal control circuitry. If a neutral bundle exists in the box, pigtail the dimmer's white neutral lead into it. If there is no neutral, select a no-neutral model — Lutron Caseta is the industry-standard choice for neutral-free boxes.
9. Fold wires into the box and mount the dimmer. Use Z-folds on each conductor to avoid sharp bends at the terminals. Seat the dimmer into the box and secure with the provided screws. Do not overtighten — the yoke can crack and misalign the faceplate.
10. Restore power and test the full dimming range. Turn the breaker on. Test from 100% to the lowest setting. Listen for buzz. If flicker or buzz appears at low levels, proceed to trim calibration before closing the installation.

Wiring Errors and Compatibility Pitfalls to Avoid

Most failed dimmer installs trace back to a short, repeatable list of errors. Recognizing them before starting eliminates the diagnostic session after the fact.

• Using an incandescent-rated dimmer on an LED load. "600W max" on the label does not mean LED-compatible. Many older dimmers function briefly before causing sustained flicker or accelerated bulb failure.
• Ignoring the compatibility list. Every major dimmer brand — Lutron, Leviton, Legrand — maintains a tested LED compatibility database online. A dimmer that works flawlessly with one brand's 10W PAR30 may produce audible buzz with another brand's equivalent. The list exists because driver circuits are not standardized across manufacturers.
• Reversing line and load on a directional single-pole dimmer. Some dimmers are directional. Reversing them may produce a functioning circuit in the short term while reducing dimmer lifespan and voiding the warranty.
• Skipping the trim adjustment. The internal trim potentiometer sets the minimum dim threshold. Without calibration, LEDs commonly flicker or ghost at low output. Trim adjustment takes 30 seconds and eliminates this entirely.
• Overloading the dimmer. Total bulb wattage on the circuit must stay at or below 80% of the dimmer's rated maximum for continuous operation. Exceeding this accelerates thermal degradation inside the dimmer's TRIAC or MOSFET.
• Replacing only one switch in a three-way circuit. A three-way configuration requires a matched dimmer and a compatible companion switch at the second location. Leaving a standard toggle at the companion location will not work with most LED dimmers and can damage the dimmer electronics.

Insider Note: When a newly installed LED dimmer buzzes at every dim level, the cause is almost always driver-dimmer incompatibility — not a wiring error. Replace the dimmer with a model confirmed on the bulb manufacturer's tested list before re-examining the wiring.

Pro Techniques for Flicker-Free, Silent Performance

Correct wiring is the baseline. These adjustments elevate a functional install to a truly excellent one.

• Calibrate the low-end trim immediately after installation. Dim the lights to the lowest usable output level. If flicker onset occurs above that point, turn the internal trim potentiometer clockwise in small increments — typically accessible through a slot in the dimmer face — until the minimum threshold sits just below flicker onset.
• Use one bulb brand per dimmer circuit. Mixing driver designs from different manufacturers introduces variable low-end thresholds that make consistent trim adjustment impossible. Pick one model and stick with it across every socket on the circuit.
• Avoid unbranded budget LED bulbs. Generic LEDs with unregulated drivers produce the worst compatibility results. The $2-per-bulb savings disappear after the first buzzing complaint or early failure.
• Test at 10%, 50%, and 100% before finalizing the install. Flicker sometimes appears only at specific points in the dimming curve, not across the full range. Testing all three levels before the wall plate goes on catches this before the job is considered done.
• For task and accent lighting, the same compatibility rules govern dimmable puck lights, linear fixtures, and retrofit kits — see the guide on how to install under cabinet lighting for application-specific guidance that applies directly to those fixture types.
• In older homes, test for a shared neutral. Where multiple circuits share a neutral conductor in the same box, a smart dimmer can introduce noise onto other circuits. Dedicated neutrals per dimmer are cleaner in multi-switch installations.

Planning for Long-Term Dimmer Performance

A correctly installed dimmer requires almost no maintenance over its service life. Long-term performance depends primarily on decisions made at install time.

• Buy dimmers from established brands with published compatibility databases. Lutron and Leviton maintain searchable online lists updated as new LED bulb models enter the market. This matters when a bulb is discontinued and a replacement needs to be selected.
• Document the bulb-dimmer pairing inside the box. Write the bulb model number and dimmer model on a piece of tape applied to the inside of the electrical box. Future maintenance or bulb replacements benefit significantly from this documentation.
• Revisit trim calibration after any bulb swap. Even replacing a discontinued model with a nominally identical successor from the same brand may require a trim readjustment — driver circuits change between production runs.
• Plan smart dimmer upgrades incrementally. Smart dimmers — Lutron Caseta, Leviton Decora Smart — offer app control, scene presets, and integration with voice assistants and home automation platforms. The per-switch premium is justified for primary living spaces; standard LED dimmers remain the right call for secondary rooms and utility circuits.
• Inspect for heat buildup in tight boxes annually. Dimmers generate heat and require airflow around the heat sink on the rear. In crowded junction boxes with multiple wires, verify nothing is pressing against the dimmer body during an annual check.
• Replace the dimmer proactively if ghost-glow reappears. A dimmer that begins ghost-glowing after years of clean operation typically has a failing TRIAC. Replacement is a 20-minute job and significantly less disruptive than tracing intermittent electrical symptoms.

Frequently Asked Questions

Final Thoughts

Installing a dimmer switch for LED lights is one of the highest-return upgrades available in a home — under $30 in parts, less than an hour of work, and an immediate transformation in how a room functions. The entire process hinges on two decisions made before the first screw is turned: confirm bulb-dimmer compatibility against the manufacturer's tested list, and choose the right dimmer type for the box configuration. Get those right, calibrate the low-end trim after installation, and the result is a silent, flicker-free circuit that will outlast most of the other components in the room. Pick up a compatible LED dimmer, pull the cover plate, and make the switch today.
