How to Add a Light Kit to a Ceiling Fan

Our team recently helped a colleague transform a dim, lifeless bedroom with a single upgrade: adding a light kit to the existing ceiling fan. The change took less than forty minutes. Learning how to add a light kit to a ceiling fan is one of the most practical home lighting upgrades available, and it requires no major electrical work in most cases. For those already exploring overhead lighting options, our guide on how to install LED strip lights on a ceiling covers complementary techniques worth reviewing alongside this one.

Most ceiling fans ship without a light kit. Manufacturers design them to accept separate kits as accessories. The connection system is either a plug-style adapter or a standard wired port beneath the motor housing. Our team has evaluated multiple kits across several fan brands, and the results consistently confirm that compatibility research before purchase saves significant frustration during installation.

This guide covers kit types, compatibility considerations, the full installation process, and common pitfalls our team has encountered. Additional lighting resources are available in our lighting category, which covers a wide range of home illumination projects.

Comparing the Most Common Ceiling Fan Light Kit Types

Light kits are not one-size-fits-all products. According to the Wikipedia entry on ceiling fans, the modern ceiling fan has evolved significantly since its inception — and light kit compatibility is now a standard design consideration. Our team has worked with several kit categories, each with distinct trade-offs.

Universal vs. Proprietary Kits

The market divides into two primary categories:

• Universal kits — designed to fit fans from multiple brands. They use standard wiring and adaptable mounting hardware. Most home improvement retailers stock them. Price points are generally lower.
• Proprietary kits — manufactured by the same brand as the fan. They connect via a dedicated plug or mounting port on the fan housing. Compatibility is guaranteed, but selection is narrower and prices tend to be higher.

Universal kits offer flexibility. Proprietary kits simplify installation for first-time installers. Our team generally recommends starting with the fan manufacturer's own kit when one exists, then considering universal options if cost or style is a limiting factor.

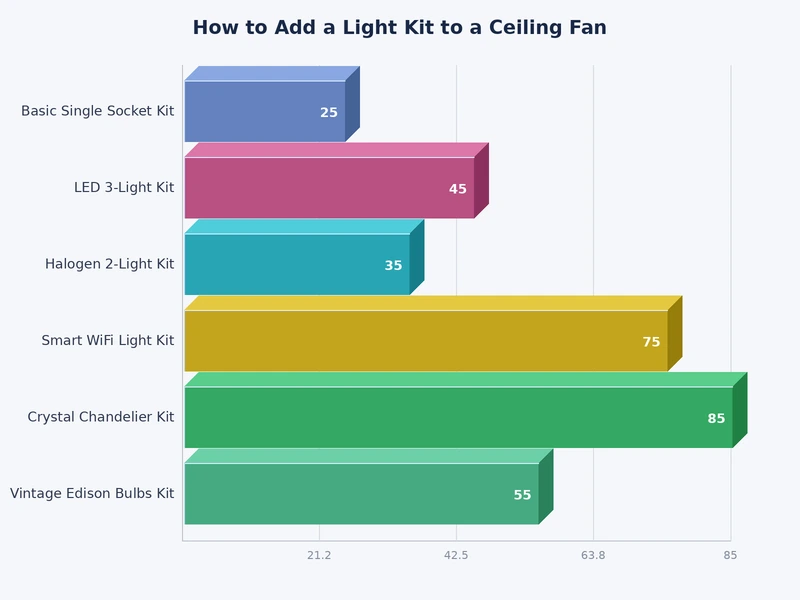

Light Kit Comparison at a Glance

Integrated LED kits (kits with built-in, non-replaceable LED arrays) offer the longest operational lifespan — often 25,000 hours or more. However, when the LEDs reach end-of-life, the entire kit must be replaced. This trade-off is worth considering before committing to the higher upfront cost.

Benefits and Limitations of Adding a Light Kit

Our team has observed consistent patterns across many installations. The advantages are meaningful, but the constraints are equally real and should inform the purchase decision.

Key Benefits

• Cost efficiency: Adding a kit to an existing fan costs a fraction of what a full fixture replacement would require.
• Dual functionality: A single ceiling fixture provides both air circulation and overhead lighting. This simplifies room design considerably.
• No new circuit required: In most residential installations, the light kit draws from the existing fan circuit. No additional electrical runs are necessary.
• Energy efficiency: Modern LED kits draw as little as 10 to 15 watts for adequate ambient illumination in a standard bedroom or living room.
• Aesthetic upgrade: A well-matched light kit modernizes the appearance of an older fan without full replacement.
• Fast installation: Most kits require between 30 and 60 minutes for an installer with basic electrical experience.
• Reversible: Kits can be removed without permanent modification to the fan or the electrical circuit.

Known Limitations

• Limited maximum brightness: Fan-mounted kits rarely match the lumen output (light level, measured in lumens) of a dedicated ceiling fixture. They function well as ambient light sources, not as primary task lighting in large rooms.
• Compatibility constraints: Not every fan accepts an aftermarket kit. Some models have a solid bottom cap with no internal wiring provision.
• Dimmer incompatibility: Standard wall dimmers designed for incandescent bulbs do not work reliably with LED fan kits. A fan-rated LED dimmer is often required as a separate purchase.
• Vibration wear on bulbs: The motor's constant vibration shortens the lifespan of standard bulbs. Rough-service or fan-rated bulbs are strongly recommended.
• Aesthetic mismatch risk: Universal kits do not always align perfectly with the fan's finish or design language. Brushed nickel kits on a matte black fan, for example, create a visual inconsistency.

Pro insight: Our team always specifies rough-service or fan-rated LED bulbs for ceiling fan light kits — standard bulbs fail far sooner due to the constant vibration transmitted through the motor housing.

On balance, the benefits outweigh the limitations for the majority of standard residential applications. The key variable is selecting the right kit for the specific fan model and room requirements.

Rooms and Settings Where Light Kits Perform Best

Not every room benefits equally from this upgrade. Our team's experience across different home types and ceiling configurations points to clear patterns in where light kits consistently deliver value.

Best Rooms for a Light Kit Upgrade

• Bedrooms: Ceiling fans are a standard fixture in most bedrooms. A soft LED kit in the 2700K to 3000K color temperature range (warm white, similar to incandescent) creates relaxing ambient light suitable for winding down at the end of the day.
• Living rooms: A globe or shade kit adds decorative interest and functional overhead illumination. Most households in this setting use the fan and light simultaneously on a regular basis.
• Sunrooms and covered patios: Outdoor-rated fans paired with outdoor-rated light kits extend the usability of these transitional spaces after dark. Moisture resistance is essential in these environments.
• Children's bedrooms and playrooms: A bright, energy-efficient kit provides consistent overhead illumination without floor lamps that present tip-over hazards for young children.
• Home offices: A 4000K to 5000K LED kit (cool white, approximating daylight) supports focus and reduces eye strain during extended screen-work sessions.
• Guest rooms: Rooms that see intermittent use benefit from the combined functionality without requiring multiple fixtures.

Matching Kit Type to Lighting Purpose

The intended use of the light determines which kit performs best:

• Ambient (general) lighting: Any standard kit is appropriate. Our team targets 800 to 1,100 lumens per 100 square feet of floor area as a baseline for adequate general illumination.
• Task lighting (reading, detailed work): A brighter kit with 1,600 or more lumens and a cooler color temperature of 4000K or above is more effective. Dimmability is also worth prioritizing here.
• Accent or mood lighting: A dimmable globe kit with warm Edison-style bulbs (2200K to 2700K) creates the soft, directional quality suitable for relaxed social settings.
• High-traffic utility spaces: A flush-mount bowl kit with a sealed globe protects the bulb from dust accumulation, reducing maintenance frequency in rooms like laundry areas or mudrooms.

When to Add a Light Kit — and When to Reconsider

Our team identifies two clear decision branches: situations where adding a light kit is the obvious right choice, and situations where the investment would be better directed elsewhere.

Good Candidates for the Upgrade

• The fan has a visible wiring port or light kit adapter on the underside of the motor housing.
• The room lacks overhead lighting entirely, or the existing lighting is insufficient.
• The existing electrical box is fan-rated (confirmed to support the combined weight of fan plus kit).
• The fan is relatively new and in solid mechanical condition — no wobble, no bearing noise.
• Budget is a factor. A compatible kit costs significantly less than a full fan replacement or a new fixture installation with rewiring.
• The fan manufacturer offers a matching proprietary kit, ensuring a seamless aesthetic result.
• The wall switch circuit already includes a separate light wire (blue or striped), enabling independent control of fan and light.

Situations Where a Kit Is Not the Right Solution

• The fan is aging, wobbling, or showing signs of motor deterioration. Investing in a light kit on a failing fan is not cost-effective.
• The bottom cap is solid with no visible wiring access. Forcing a kit onto an incompatible housing creates both installation difficulty and potential electrical hazards.
• The ceiling height is under seven feet. A flush-mount fan without a pendant-style kit is the safer configuration in low-clearance rooms.
• The room requires sustained high-lumen task lighting. Fan kits rarely provide sufficient output for workshops, garages, or commercial kitchens.
• The wall switch circuit runs only a single wire to the fan with no light provision. Full functionality requires either a new switch leg or a remote/receiver kit, adding cost and complexity.
• The fan is located in a damp or wet-rated location and the kit under consideration is rated for dry environments only.

For rooms where dedicated, targeted illumination is the primary need, our guide on how to install under cabinet lighting explores task-focused lighting solutions that complement — rather than replace — ceiling-mounted sources.

How to Add a Light Kit to a Ceiling Fan: Step-by-Step Best Practices

Our team follows a consistent process for this installation. The sequence below reflects what we consider best practice for a safe, clean result across a wide range of fan models and kit types.

Tools and Materials Needed

• Compatible light kit (universal or proprietary, confirmed for the fan model)
• Flathead and Phillips screwdrivers
• Wire stripper and needle-nose pliers
• Non-contact voltage tester
• Wire nuts (if not included in the kit)
• Electrical tape
• Stable ladder or step stool rated for the installer's weight
• Rough-service or fan-rated LED bulbs appropriate to the kit's wattage limit

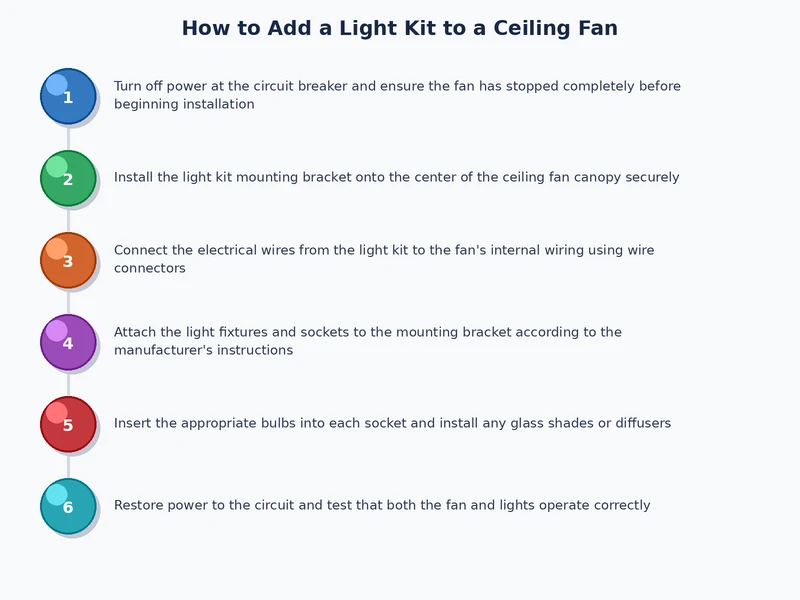

Installation Steps

1. Shut off power at the breaker. Do not rely on the wall switch alone. Locate the circuit breaker that controls the fan and switch it fully off. Confirm no power is present using a non-contact voltage tester before touching any wires.
2. Remove the bottom cap. Most fans have a decorative cover on the underside of the motor housing. Unscrew it by hand or with a screwdriver. Set the screws in a small container to avoid losing them.
3. Identify the light kit wiring. Inside the housing, there should be a blue wire or a black wire with a blue stripe designated for the light kit connection. Some fans have a capped wire coiled inside. Others use a plug-style quick-connect adapter.
4. Connect the kit wires. Match black to black (or blue), white to white, and green (or bare copper) to the grounding wire. Twist each pair of conductors clockwise until tight, then secure with a wire nut. Tug gently on each connection to confirm it holds. Apply a short wrap of electrical tape over each wire nut as a secondary precaution.
5. Mount the light kit to the fan housing. Align the mounting bracket with the screw holes on the underside of the motor housing. Tighten screws firmly. Avoid overtightening, which can crack plastic housings or strip threaded inserts.
6. Tuck the wires carefully. Before attaching the canopy (the decorative cover that hides the wiring), ensure no wire is pinched between surfaces. Pinched insulation is a fire risk.
7. Install the bulbs. Use only bulbs at or below the wattage rating printed inside the kit. Exceeding the rating is a code violation and creates a fire hazard.
8. Restore power and test. Switch the breaker back on. Test the fan and the light independently. Look for any flickering, which typically indicates a loose wire connection that needs to be re-tightened.

Safety and Post-Installation Checks

• Confirm the fan does not wobble after the kit is attached. The added weight of the kit can amplify any pre-existing imbalance in the blade assembly. A balancing kit (an inexpensive adhesive weight set, usually under five dollars) resolves most wobble issues.
• Verify the kit canopy sits flush against the fan housing with no visible gaps where wiring is exposed.
• If the light flickers when the fan motor runs, the cause is almost always a loose wire nut connection. Re-check all connections with power off before running the fan again.
• For fans equipped with a remote control system, follow the manufacturer's pairing instructions for the light function. Some receivers require a reset sequence after a new light kit is added.
• Inspect all wiring connections at least once per year. Motor vibration can gradually loosen wire nuts over time, and periodic inspection prevents this from becoming a safety issue.
• Confirm that the wall dimmer switch (if present) is rated for the specific LED kit installed. Mismatched dimmers cause flickering, buzzing, and premature LED failure.

A ceiling fan with the right light kit is not two things working together — it is one fixture doing exactly what the room needs.
