Studies from the U.S. Department of Energy show that LED systems consume up to 75 percent less energy than incandescent equivalents, and that single figure reframes how to install under cabinet lighting from a weekend project into a genuinely sensible household investment. Countertop task lighting is one of those improvements that reveals its value immediately — every shadow blocking your knife work or making a recipe label difficult to read disappears the first time you flip the switch. Whether you're retrofitting a vintage kitchen or specifying fixtures during a full renovation, the installation process follows a repeatable logic that rewards careful preparation far more than it rewards brute effort.
The lighting section at Linea covers everything from ambient ceiling solutions to highly directional task fixtures, and under-cabinet lighting occupies a particularly useful middle ground between those two poles. It delivers focused, shadow-free illumination exactly where hands and surfaces interact, without adding ceiling glare or competing with decorative pendants. Your choice of fixture type — rigid LED bars, flexible strip tape, or hardwired puck lights — determines not only the installation method but the quality of light you'll live with for years, making that selection as consequential as anything that happens during the physical installation itself.

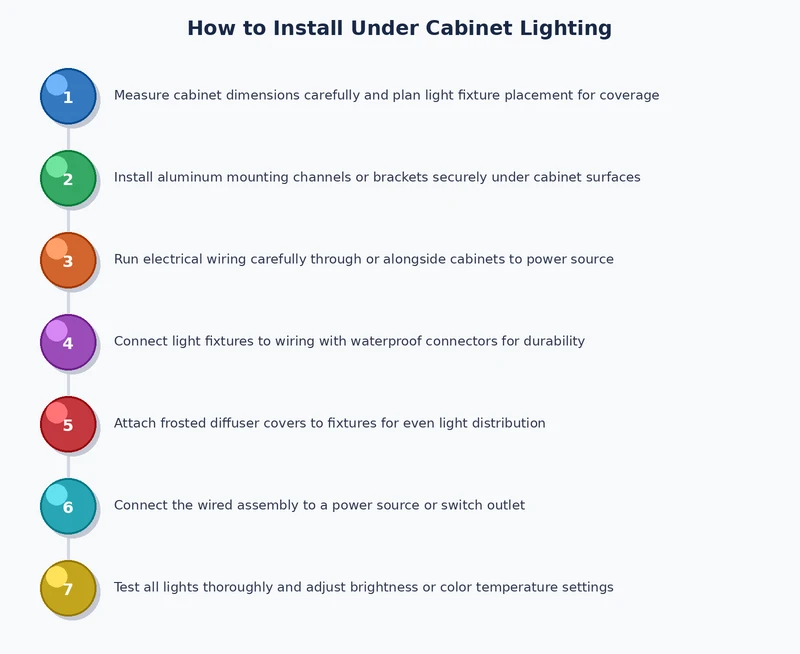

This guide walks you through the full process, from circuit assessment through final color-temperature tuning, with particular attention to the decision points where DIYers most commonly lose hours or money. You'll find a balanced look at plug-in versus hardwired systems, real-world layout considerations, and a direct accounting of the mistakes that experienced installers encounter in nearly every kitchen they enter.
Contents
Before committing to any fixture, verify that your existing circuit can absorb the additional load. A 15-amp kitchen circuit running near capacity with a microwave, coffee maker, and toaster already has little headroom for anything beyond a modest strip system. Using a quality circuit analyzer at the outlet or junction box you intend to tap gives you an accurate load reading rather than a guess, and that reading shapes every fixture and transformer decision that follows. If the circuit is marginal, installing a dedicated 20-amp run is a morning's work for a licensed electrician and removes load anxiety for the life of the fixture.
A successful installation depends less on specialty tools than on having the right items staged before you begin. You'll need a drill with a 1-inch spade or hole-saw bit for wire routing, a non-contact voltage tester rated for the work voltage, fish tape or a stiff wire pull, wire nuts or push-in connectors rated for 14 or 12 AWG, and mounting hardware appropriate to your cabinet material. For LED strip installations, a ruler and straight-edge matter more than most people expect — a strip that wanders even a few millimeters from the cabinet's front edge produces a visible hotspot pattern on the countertop rather than a smooth, even wash of light. Isopropyl alcohol for surface prep, a heat gun for adhesive activation, and a cable channel for cord management round out the kit for virtually any residential installation.

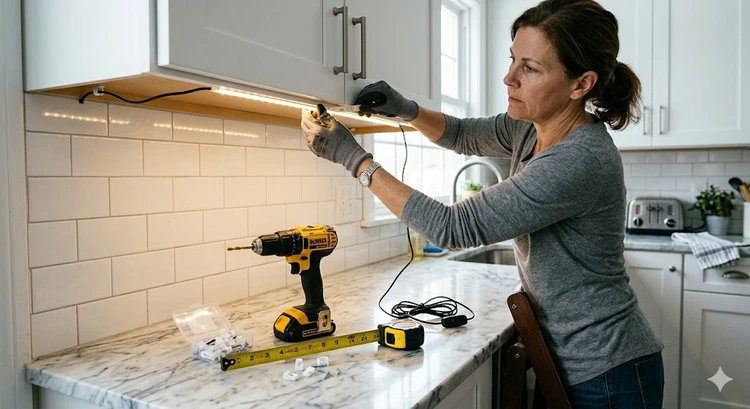

Position rigid bar fixtures or strip tape consistently — typically one to two inches from the front face of the cabinet base, centered on the cabinet depth where the depth allows. This placement casts light forward across the countertop rather than straight down the backsplash, which is the functional difference between useful task lighting and an expensive wall accent. Drill wire-routing holes through the back wall of the cabinet or through the cabinet base panel, keeping penetrations above the countertop line where they remain permanently concealed. For hardwired systems, bring a switched hot, neutral, and ground from the junction box through the routed path, terminate with wire nuts inside a listed electrical box, and connect the driver or transformer according to the manufacturer's wiring diagram. Confirm continuity and polarity before applying any cover plates or finishing trim.
Always verify with a non-contact voltage tester that the circuit is fully de-energized at both the breaker and the outlet before making any wire connections — testers cost less than twenty dollars and far less than a hospital visit.
The physics of under-cabinet lighting change meaningfully depending on kitchen layout, cabinet depth, and the finish materials on your countertop and backsplash. A highly reflective quartz surface bounces light back upward and can create a wash effect that looks polished or washed-out depending on fixture positioning. A honed matte stone surface absorbs more light and rewards higher-output strips, while wood butcher block tends to shift the apparent color temperature of 4000K fixtures toward amber under certain ambient conditions. Understanding how your specific surface interacts with the light source saves you from replacing correctly installed fixtures that simply weren't right for the material combination.
Galley kitchens with uninterrupted runs of upper cabinets are the simplest installation scenario and the best showcase for LED strip systems, since a single continuous strip can cover ten or twelve linear feet from one driver without the color-temperature variation that comes from daisy-chaining multiple shorter segments. Run the strip in a single aluminum channel extrusion, connect it to a remote driver located inside the end cabinet, and you have a completely clean installation with no exposed hardware. Ganging multiple galley runs to a single wall switch gives you whole-kitchen control from one point, which is where pairing your installation with a properly rated LED dimmer switch becomes critical — phase-cut dimmers designed for incandescent loads will flicker or buzz with most LED drivers, sometimes immediately and sometimes only after the dimmer warms up.
Corner transitions in L-shaped and U-shaped kitchens introduce a junction where two strips meet at 90 degrees, and the handling of that corner determines whether the finished installation looks professional or improvised. Rigid bar fixtures require separate mounting on each cabinet run with a small gap at the corner that, if left unmanaged, produces a dark spot directly above the most heavily used countertop area. Flexible LED strips with a 90-degree corner connector, or a carefully mitered aluminum extrusion channel, both eliminate that gap while maintaining a consistent optical line across the transition. Mark out the full layout on paper before purchasing hardware, because corner transitions frequently shift total strip length requirements by 15 to 20 percent from a naive linear measurement of the cabinet runs.
Not every under-cabinet lighting improvement requires a Saturday of drilling and wire-pulling. Several high-value adjustments fall within the capability of anyone comfortable with a screwdriver, and they collectively account for a substantial portion of the visual impact that a full hardwired installation delivers. These are the interventions that experienced installers reach for first when budgets are tight or timelines are compressed, and they're worth considering even if you plan a more permanent installation later.
Plug-in LED strip systems have matured considerably and now offer output levels — routinely 400 to 600 lumens per linear foot on premium products — that match hardwired equivalents on a per-watt basis at comparable price points. The practical limitation is cord management: outlets positioned at the back of upper cabinets or inside cabinet interiors keep power cords invisible, while outlets located on walls or backsplash require a surface channel or a routing path through the cabinet base. If you're upgrading a rental or need reversible lighting for a kitchen remodel that isn't finalized, a well-chosen plug-in strip is functionally indistinguishable from a hardwired system once installed and removes itself cleanly when circumstances change.
Adding dimming capability to an existing non-dimmed under-cabinet installation typically costs under forty dollars in hardware and transforms the fixture's utility across different usage scenarios — from full-brightness food prep to reduced ambient light during evening hours when the kitchen becomes a gathering space rather than a work area. Confirm that your existing LED driver or strip is rated for dimming before purchasing a dimmer module, since non-dimmable drivers will either ignore the dimmer signal entirely or fail prematurely under the load modulation. Trailing-edge (ELV) dimmers are generally more compatible with LED drivers than leading-edge (TRIAC) dimmers, and the compatibility list on the dimmer manufacturer's website is the authoritative source rather than any general rule of thumb.
The decision between hardwired and plug-in under-cabinet lighting involves tradeoffs across installation effort, finished appearance, code compliance, and long-term flexibility. Neither approach is categorically superior — the right choice depends on your electrical access, cabinet configuration, and how permanently you intend to commit to a specific fixture. The table below maps the principal differences across the dimensions that matter most for a typical residential installation.
| Factor | Hardwired | Plug-In |
|---|---|---|
| Installation complexity | High — requires circuit access, wire routing, and listed box work | Low — surface mount with adhesive or screws, cord to existing outlet |
| Finished appearance | Cleanest — no visible cord or plug at any point | Acceptable — cord management required for a clean look |
| Code compliance | Permit typically required; must follow NEC junction box rules | No permit needed; uses existing listed outlet |
| Reversibility | Permanent; removal requires patching and possibly repainting | Fully reversible with no wall or cabinet damage |
| Switch integration | Tied to wall switch; full smart-home integration possible | Requires inline switch or smart outlet adapter for automation |
| Typical installed cost | $150–$400+ including electrician labor if required | $30–$120 in parts, DIY installation throughout |
A hardwired installation eliminates every cord-management compromise and integrates seamlessly with a wall switch that controls the under-cabinet circuit independently from the main overhead lighting, which is a convenience that plug-in systems can only approximate through smart outlet adapters. The hardwired approach also allows you to specify a remote transformer or driver located entirely inside the cabinet, keeping all electronics concealed and accessible for servicing without disturbing the fixture itself. When resale value enters the calculation, a professionally finished hardwired installation reads as a permanent fixture to buyers and appraisers in a way that plug-in strips simply do not, and that perception is backed by the additional labor and material investment the installation genuinely represents.
Plug-in systems have a decisive advantage in speed and reversibility, and they impose no electrical permit burden — which matters in jurisdictions where unpermitted fixture work creates complications at resale inspection. They also let you test fixture placement, color temperature, and output level before committing to any permanent penetration, which is a practical advantage when you're working with a kitchen where the final countertop or backsplash material hasn't been installed yet. The quality gap between plug-in and hardwired fixtures has narrowed to the point where output and CRI ratings are effectively identical at comparable price points, removing the performance rationale for hardwiring that existed even five years ago.
The majority of under-cabinet lighting complaints — hotspots, color inconsistency, premature driver failure, persistent flickering — trace back to a small set of installation errors that are entirely avoidable once you know to look for them. Working carefully through the steps above eliminates most of these, but a few specific pitfalls deserve direct attention because they occur even among experienced DIYers who understand the electrical fundamentals and simply overlook mechanical details.
Mounting strips or bars too far back toward the cabinet wall is the single most common error in DIY under-cabinet lighting, and it directs light down the backsplash rather than across the countertop — the opposite of the intended functional effect. The front edge of the fixture should align within one to two inches of the cabinet face, which positions the light source above the front half of the counter where hands and cutting boards actually operate throughout the day. Spacing multiple puck lights beyond twelve inches on center produces scalloping, a pattern of alternating bright circles and dim gaps that reads as amateurish regardless of fixture quality or brand. Linear strips avoid scalloping entirely and are worth the modest cost premium specifically for that reason.
Undersizing the driver or transformer for the total strip length is a failure mode that manifests slowly — the driver runs warm, its electrolytic capacitors degrade faster than their rated lifespan, and the strips begin flickering at the far end of the run before eventually failing. Size your driver to no more than 80 percent of its rated wattage when loaded with your strips, and specify a driver with a UL or ETL listing rather than an unmarked import. Using wire connectors rated below your conductor gauge — a common error when pulling leftover hardware from a previous project — creates a high-resistance junction that generates heat inside a concealed cabinet space, which is a fire hazard rather than a nuisance. The correct wire nuts for your conductor size are color-coded by every major manufacturer and cost almost nothing to get right the first time.
Plug-in systems require no electrical license or permit and are safely within DIY capability for anyone comfortable with basic hand tools. Hardwired installations that connect to the home's branch circuit typically require a permit in most U.S. jurisdictions, and while a skilled DIYer can perform the physical work, many homeowners hire a licensed electrician for the branch circuit connection to ensure code compliance and avoid complications at future inspections.
2700K to 3000K produces a warm white light that flatters wood tones and is widely preferred for residential kitchens used primarily for cooking and entertaining. 3500K to 4000K is a cooler neutral white that reads as brighter at equivalent lumen output and suits kitchens that double as work spaces where task accuracy matters more than atmosphere.
The Illuminating Engineering Society positions kitchen task lighting at 50 foot-candles at countertop level, which translates to approximately 250 to 350 lumens per linear foot of cabinet for most residential ceiling heights. High-output strips offering 400 to 600 lumens per foot provide comfortable headroom for dimming while still meeting task lighting requirements at moderate dim levels.
Yes, provided the combined wattage of all connected strips does not exceed 80 percent of the driver's rated output capacity. Multiple strips should be connected in parallel rather than in series to maintain uniform voltage across each strip and prevent the brightness gradient that appears when strips are daisy-chained without a proper parallel distribution point.
Task lighting positioned directly above countertop work areas consistently ranks among the highest-value kitchen lighting upgrades in terms of daily functional improvement relative to cost. LED systems at current price points make the question less whether the upgrade is worth it and more which system type best suits your kitchen's existing electrical layout and your tolerance for installation complexity.
 |
 |
 |
 |
