by Marcus Webb
Does the front door deadbolt still require fumbling with keys at midnight, or worse, leaving a spare hidden under a mat? A smart lock installation guide answers that concern directly — and the short answer is that most standard deadbolts can be upgraded to keyless entry without drilling new holes, often completing the entire process in a single afternoon. The broader landscape of connected home devices, explored throughout the smart home section, provides essential context for where smart locks sit within a layered security and convenience ecosystem.
Modern smart locks fall into two primary categories: full deadbolt replacements that swap out the entire lock assembly, and retrofit actuators that attach to the interior thumbturn while leaving the exterior cylinder intact. Each approach carries distinct trade-offs in cost, compatibility, and rental viability, making the choice of mechanism as consequential as any feature on the spec sheet. Renters facing restrictions on permanent modifications will find particular value in retrofit-style actuators; a detailed breakdown of non-permanent strategies is available in the guide to setting up smart home devices in an apartment without permanent changes.
Connectivity protocol is the second major variable, with Wi-Fi, Z-Wave, Zigbee, and Bluetooth each carrying meaningful implications for hub dependency, battery drain, and remote access range. Understanding those trade-offs before purchase prevents the most common source of post-installation frustration — discovering that a chosen lock requires a hub the home does not yet own. The comprehensive comparison of Zigbee vs Z-Wave vs Wi-Fi vs Bluetooth smart home protocols covers those distinctions in full technical detail.
Contents
The smart lock category attracts a disproportionate share of misconceptions, many originating from early-generation devices that were genuinely unreliable. Contemporary deadbolt replacements from established manufacturers — August, Schlage, Yale, Kwikset — operate on firmware-level security protocols that meet or exceed NIST cybersecurity framework guidelines for consumer IoT devices. The idea that a smart lock is inherently less secure than a traditional deadbolt conflates network-layer risk with physical-layer risk, which are managed through entirely different mechanisms.
Encrypted communication channels — AES-128 minimum for reputable brands, AES-256 in premium models — make over-the-air credential interception a non-trivial attack vector. Physical vulnerabilities in the lock cylinder itself remain a far more accessible point of entry for most opportunistic intruders, which means the security calculus rarely shifts meaningfully with the addition of a smart actuator over a well-graded traditional deadbolt.
Standard ANSI/BHMA-grade deadbolt cutouts are dimensionally identical across manufacturers, meaning most smart lock replacements slot directly into existing door prep without modification. The exception is doors with non-standard backset measurements — typically 2-3/8 inch versus the dominant 2-3/4 inch — a variable to verify before unboxing any new hardware.
Pro tip: Measure door backset and cross-bore diameter before ordering — a mismatch on either dimension turns a 45-minute swap into a half-day carpentry project.
Budget expectations vary widely in this category, partly because entry-level and premium tiers serve genuinely different use cases rather than simply delivering more of the same capability. The table below reflects current street pricing across the major connectivity tiers, giving a realistic picture before any purchase decision is made.
| Category | Price Range | Connectivity | Hub Required | Remote Access |
|---|---|---|---|---|
| Retrofit Actuator | $80–$130 | Bluetooth / Wi-Fi | No (BT) / Optional | Wi-Fi models only |
| Entry-Level Deadbolt | $100–$160 | Bluetooth + Wi-Fi | No | Yes (built-in) |
| Mid-Range Deadbolt | $160–$250 | Z-Wave / Zigbee | Yes | Via hub |
| Premium / Matter | $250–$400+ | Multi-protocol | Optional | Yes + Matter |

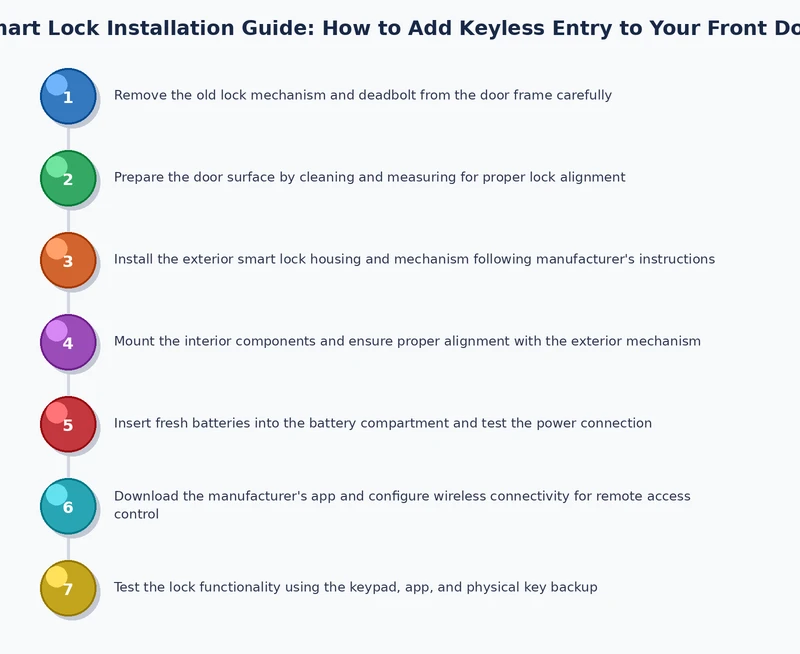

The vast majority of smart lock installations follow an identical sequence regardless of brand, because door prep is standardized and the lock itself handles all the electronic complexity. First-time installers routinely complete a full deadbolt replacement within 30–60 minutes; retrofit actuators typically take 15–20 minutes from start to first keypad test.
Remove the existing deadbolt by unscrewing the interior rose plate, withdrawing the cylinder, and pulling the latch assembly from the edge of the door. Most smart deadbolts ship with a replacement latch, though the original can often be reused if the backset and faceplate dimensions match. Thread the new exterior assembly through the cross-bore, align the tailpiece with the latch retractor, then secure the interior assembly and tighten the mounting screws evenly to avoid torquing the chassis. Load batteries, follow the app pairing sequence, and run a full manual lock and unlock cycle before closing the door to confirm alignment and bolt extension depth.
Smart locks are low-maintenance devices, but they are not zero-maintenance, and the failure modes that most commonly surface — unresponsive keypads, failed app connections, shortened battery cycles — trace back to a small set of neglected variables. Establishing a simple quarterly check keeps most units performing at factory specification for five or more years of daily operation.
Alkaline batteries consistently outperform lithium in smart lock applications despite counterintuitive marketing language claiming otherwise; smart lock electronics draw current in irregular pulses that alkaline chemistry handles more efficiently at standard indoor temperatures. Replacing cells at the first low-battery notification — rather than waiting for the critical warning — eliminates the majority of emergency lockout scenarios caused by power failure.
The diagnostic process for smart lock malfunctions follows a predictable hierarchy: power first, connectivity second, mechanical third, and firmware last. The majority of reported failures resolve at the power stage, making battery replacement the correct opening move before any deeper investigation is warranted.
Wi-Fi smart locks communicate on 2.4 GHz exclusively — a detail that causes significant confusion when routers broadcast a unified SSID across 2.4 and 5 GHz bands simultaneously. Forcing the lock to connect to a dedicated 2.4 GHz network, or temporarily disabling the 5 GHz band during initial pairing, resolves the most common pairing failure without any hardware intervention. Z-Wave and Zigbee units experiencing range dropout benefit from mesh network expansion through additional compatible devices rather than router repositioning.
A deadbolt that operates manually but stalls under motor power almost always indicates that the bolt is binding against the strike plate — a misalignment that worsens predictably as the door expands with seasonal humidity shifts. Loosening the strike plate screws, shifting the plate position by 1/16 to 1/8 inch in the direction of binding, and retightening resolves the mechanical resistance without requiring full lock removal or professional service.
Installation errors in this category cluster around a handful of repeatable mistakes that appear consistently in manufacturer support queues. Awareness of these patterns before starting prevents the most common sources of post-installation frustration and unnecessary return shipping.
Assuming that an existing deadbolt footprint will accommodate any replacement lock without measurement is the single most common error in DIY smart lock installation. Backset, cross-bore diameter, and door thickness all influence compatibility, and a mismatch in any dimension requires either a different product or carpentry modification before installation can proceed.
Completing the app pairing process before physically mounting the lock seems logical but creates a calibration problem — many smart locks perform a motor calibration sequence during initial pairing that requires the bolt to be installed in the door and free-throwing against a real strike plate. Pairing a lock held in the hand and then mounting it often results in a motor that stops short of full extension, producing intermittent failures that are difficult to reproduce and diagnose.
In most cases, replacing a standard deadbolt with a smart lock does not void a door warranty because the door prep itself remains unchanged; however, drilling new holes or modifying the frame could trigger warranty exclusions on doors that carry them, so consulting manufacturer documentation before any modification is advisable.
Non-standard backset measurements, doors exceeding 2-1/4 inches in thickness, or narrow stile widths on French doors may require an adapter kit or a purpose-built model; most major brands publish detailed compatibility guides and offer adapters as optional accessories at the point of purchase.
ANSI Grade 1 smart deadbolts offer equivalent physical resistance to their non-smart counterparts at the same grade level; network security depends on protocol and firmware currency, with AES-encrypted models from established brands presenting minimal incremental risk over a standard keyed deadbolt of comparable physical grade.
Battery-powered smart locks remain fully functional during power outages because they carry their own self-contained power source; Wi-Fi and hub-dependent features such as remote access and automation routines go offline if the router loses power, but local keypad and Bluetooth access remain available throughout.
Battery life ranges from approximately four months to over a year depending on usage frequency, connectivity protocol, and battery chemistry; Z-Wave and Zigbee models tend toward the longer end because those radio protocols draw significantly less continuous power than always-on Wi-Fi transceivers.
Integration compatibility depends on both the lock's connectivity protocol and the security panel's supported standards; Z-Wave is the most broadly supported protocol across major alarm systems, while Matter-compatible locks promise growing cross-platform interoperability as that standard continues to mature across manufacturers.
Retrofit actuators that clamp onto the interior thumbturn of an existing deadbolt require no drilling or permanent alteration and can be removed without a trace, making them the standard recommendation for renters operating under lease restrictions that prohibit lock replacement or door modification.
 |
 |
 |
 |
