by Marcus Webb
Over 300 million smart home devices ship annually worldwide — and most buyers never stop to think about the protocol running underneath. The choice between zigbee vs z-wave vs wifi smart home setups shapes everything: reliability, range, battery life, and long-term cost. Getting it wrong means dropped commands, pairing failures, and a mesh that falls apart under load. Getting it right means a home that responds instantly, every time. For anyone building or upgrading a smart home setup, protocol selection is the foundation — and it deserves serious attention.
Each protocol was designed for a different job. Wi-Fi was built for bandwidth. Bluetooth was built for proximity. Zigbee and Z-Wave were built specifically for low-power device meshes — and that difference matters enormously in a house full of sensors, locks, and dimmers. Understanding the tradeoffs upfront saves a lot of headache later.
This breakdown covers what each protocol actually does, where it excels, where it fails, and which scenarios call for which choice. No hedging. Just clear guidance based on real-world performance.
Contents
A wireless protocol is the language devices use to talk to each other. It defines the frequency, range, power consumption, encryption, and network topology. Protocol choice determines more about a smart home's behavior than the brand of any single device.
There are four main options in residential deployments today:
Zigbee and Z-Wave use true mesh networking — every mains-powered device acts as a repeater, extending coverage automatically. Wi-Fi connects everything back to a central router. Bluetooth is mostly point-to-point, though Bluetooth Mesh closes that gap somewhat for larger installs.
Zigbee and Z-Wave were engineered specifically for home automation from the ground up — not retrofitted from a different use case. That intentional design shows in their feature sets and battery efficiency.
Pro tip: If the hub goes offline, local-processing protocols like Zigbee and Z-Wave keep running. Most Wi-Fi devices go completely unresponsive without cloud connectivity — a critical difference for reliability.
Zigbee runs on the 2.4 GHz band using the IEEE 802.15.4 physical standard. It forms a self-healing mesh where each mains-powered device acts as a router. Battery-powered devices are end nodes — they receive commands but don't repeat.
Key specs:
Zigbee's standout strength is device density. A large home can run hundreds of sensors, switches, and bulbs on one coordinator without degradation. Philips Hue, IKEA Tradfri, and SmartThings all lean on Zigbee heavily for good reason.
The friction point: Zigbee has had multiple profile versions — Zigbee HA, Zigbee Light Link, Zigbee 3.0. Zigbee 3.0 unified most of these, but older hardware can still produce pairing headaches with newer coordinators.
Z-Wave operates on sub-GHz frequencies — 908 MHz in the US, 868 MHz in Europe. Lower frequency means superior wall penetration and zero interference from crowded 2.4 GHz traffic. It's a proprietary standard, now governed by the Z-Wave Alliance under the Silicon Labs umbrella.
Key specs:
The 232-device cap is Z-Wave's primary ceiling for large installations. For most households, it's not a binding constraint. Z-Wave S2 is the strongest out-of-the-box security standard in any residential protocol — non-negotiable for locks and alarm sensors. Z-Wave also mandates interoperability certification. Every Z-Wave certified device works with every Z-Wave hub. That's a guarantee Zigbee can't fully make.
Wi-Fi is everywhere and requires zero additional hub infrastructure. Plug in a Wi-Fi smart plug, open an app, and it's live. That accessibility explains its dominance in the consumer market — even if professionals rarely build serious smart homes around it alone.
Key specs:
Wi-Fi devices are almost universally cloud-dependent. When the vendor server goes offline, devices go dumb. Cloud dependency is the real long-term risk for Wi-Fi-first smart home investments. Matter-over-Wi-Fi is beginning to address local control, but adoption across the device market is uneven at best.
For thermostat upgrades specifically — which almost always run on Wi-Fi — the Smart Thermostat Installation Guide covers exactly what to expect during setup and how to handle older HVAC wiring.
Bluetooth Low Energy is power-efficient and built into every smartphone, making initial pairing dead simple. Bluetooth Mesh extends range by letting devices relay signals across a network, but it's still less capable than Zigbee or Z-Wave mesh implementations in practice.
Key specs:
Bluetooth is best for proximity-based devices: presence detection, BLE tags, and certain smart bulbs. For whole-home automation it's not a primary backbone. Thread — Apple's low-power mesh successor using the same 802.15.4 physical layer as Zigbee — is filling in Bluetooth's gaps within the Apple HomeKit ecosystem.
This table cuts through the marketing copy and shows what each protocol actually delivers in a residential environment side by side.
| Feature | Zigbee | Z-Wave | Wi-Fi | Bluetooth / BLE |
|---|---|---|---|---|
| Frequency | 2.4 GHz | 908 MHz (US) | 2.4 / 5 GHz | 2.4 GHz |
| Network Type | Mesh | Mesh | Star (router) | Point-to-point / Mesh |
| Max Devices | 65,000+ | 232 | Router-limited | 32,000+ theoretical |
| Battery Life | Excellent | Excellent | Poor — mains required | Good (BLE) |
| Local Control | Yes (hub required) | Yes (hub required) | Rarely | Yes (direct) |
| Interference Risk | Medium (2.4 GHz) | Low (sub-GHz) | Medium–High | Medium |
| Security Standard | AES-128 | S2 — best-in-class | Varies widely | AES-128 |
| Hub Required | Yes | Yes | No | Often no |
| Interoperability | Good (Zigbee 3.0) | Excellent (certified) | Varies by app/vendor | Good |

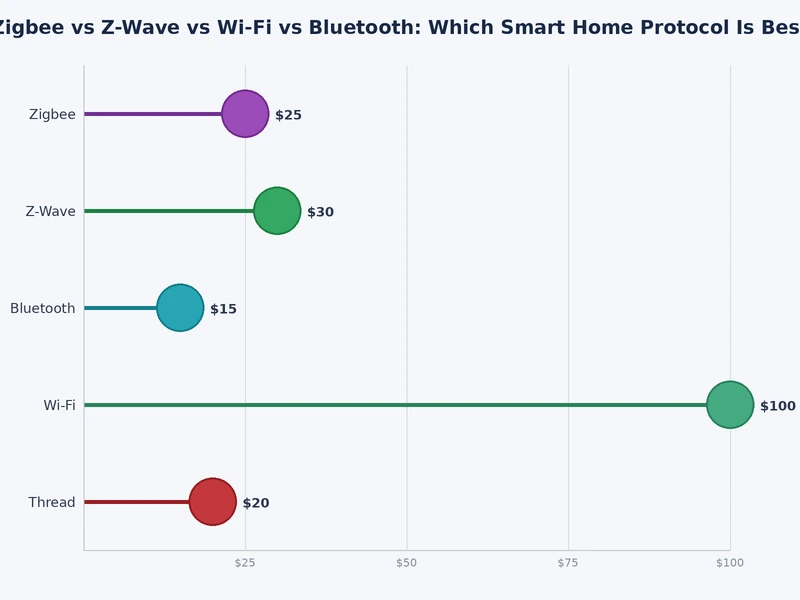

| Cost Per Device | Low–Medium | Medium–High | Low | Low |
Z-Wave wins on security and interoperability. Zigbee wins on device count and ecosystem breadth. Wi-Fi wins on accessibility and bandwidth. Bluetooth wins on latency and no-hub simplicity. There's no universal winner — only the right tool for the right device category.
Warning: Zigbee operates on 2.4 GHz, sharing spectrum with Wi-Fi. Running both on overlapping channels causes dropped commands. Set Wi-Fi to channels 1, 6, or 11 and assign Zigbee to channel 15, 20, or 25 to avoid collisions.
The decision comes down to four factors: device count, security requirements, cloud tolerance, and hub complexity. Here's how to map those factors to protocol choices.
Locks, alarm sensors, and access control belong on Z-Wave. Z-Wave S2 is non-negotiable for anything that controls physical entry. No other residential protocol matches its mandatory certification and encryption framework.
For lighting at any meaningful scale, Zigbee is the clear protocol of choice. The 65,000+ device ceiling versus Z-Wave's 232 makes the comparison straightforward. A home with smart bulbs in every fixture, motion sensors in each room, and contact sensors on every window can approach Z-Wave's cap faster than expected.
Cameras, video doorbells, and streaming devices have no viable alternative. They need throughput that Zigbee and Z-Wave simply don't offer. Accept the cloud dependency for these devices — it's unavoidable with current hardware.
BLE excels at short-range, low-latency scenarios. Presence detection near an entry point, asset tags, and proximity-triggered automations are exactly where it belongs — not as a backbone, but as a useful complement.
Most serious smart homes don't choose a single protocol. They run two or three simultaneously on a multi-protocol hub. Here's what that looks like in practice.
This is the most common approach for production-grade home automation. Zigbee handles lighting, environmental sensors, and any device category requiring high node counts. Z-Wave handles locks, alarm sensors, and anything where S2 encryption is mandatory.
Multi-protocol hubs that support both natively:
For renters or anyone avoiding hub complexity, Wi-Fi plus Bluetooth covers the basics. Smart bulbs, plugs, and speakers run natively from a phone app. The tradeoff is increasing router congestion and full cloud dependency as the device count climbs past a dozen or so units.
A three-protocol setup with a Matter-compatible hub is where the ecosystem is heading. Matter bridges devices across protocols under a unified control layer. Hubitat and Home Assistant are ahead of the curve on Matter support. Not every device category has caught up yet, but the direction is clear.
Zigbee is the more accessible starting point. The device ecosystem is larger, per-device costs are lower, and platforms like SmartThings and Zigbee2MQTT on Home Assistant are well-documented. Z-Wave is marginally harder to enter due to higher hardware costs, but its mandatory interoperability certification means fewer pairing surprises once set up. Either is manageable — Zigbee just has a shorter learning curve.
Yes. Multi-protocol hubs like SmartThings, Hubitat Elevation, and Home Assistant with dedicated USB sticks run both simultaneously with no conflicts. This is standard practice for serious smart home builds — Zigbee for lighting and sensors, Z-Wave for locks and security hardware.
No — Matter bridges protocols rather than replacing them. It's an application-layer standard that enables cross-ecosystem device communication, but it still relies on underlying physical protocols. Matter over Thread (which shares the 802.15.4 physical layer with Zigbee) is the most relevant development, but Z-Wave and Zigbee remain fully viable and aren't being discontinued by any major vendor.
The zigbee vs z-wave vs wifi smart home debate has a practical answer: start with a multi-protocol hub, put Zigbee on lighting and sensors, put Z-Wave on anything controlling physical access, and accept Wi-Fi only where bandwidth demands leave no alternative. Browse the full smart home section for compatible device picks across every protocol — then start building a setup that runs locally, doesn't depend on a vendor's server staying online, and actually works when it matters.
 |
 |
 |
 |
