Replacing batteries in a tactical flashlight is a two-minute job. Unscrew the tailcap, remove the old cells, insert fresh ones with correct polarity, and reassemble. Knowing how to replace batteries in a tactical flashlight correctly — matching the right cell type, checking polarity, and cleaning contacts — keeps the light reliable when it matters most. A wrong installation can corrode the battery tube, drain power prematurely, or prevent the light from firing at all. Tactical flashlights in the flashlights category span a wide range of designs, from compact CR123A-powered penlights to full-size 21700-cell powerhouses — and each has its own replacement procedure.
Tactical flashlights are built to different standards than standard household lights. Most use cylindrical lithium or alkaline cells loaded through a threaded tailcap or head cap. Polarity matters far more here than it does in a TV remote. Reverse a protected lithium cell once and the protection circuit trips — the light simply won't power on. Reverse an unprotected cell and the risk escalates to a short circuit that can heat the cell dangerously fast. This guide covers the complete replacement process: the right tools, the correct steps, the battery types that matter, and the traps that catch most people off guard.
Contents
Tactical flashlights are engineered for high-output, high-drain operation — the opposite of the plastic flashlight sitting in a junk drawer. A standard household AA flashlight draws roughly 0.5 watts. A tactical light on turbo mode can pull 10 to 30 watts from the same tube size. That level of current demand requires specific cell chemistry, form factors, and circuit regulation that household lights simply don't need.
The most common battery types found in tactical flashlights:
According to the Wikipedia overview of flashlight design history, modern LED-based flashlights have dramatically improved power efficiency — but tactical designs push that efficiency aggressively to achieve peak lumen outputs that would have been impossible a decade ago.
Running the wrong voltage into a flashlight destroys the driver — the circuit board that regulates power to the LED. Two CR123As wired in series produce 6V. A light rated for one 18650 expects 4.2V maximum. That mismatch doesn't just dim the light. It kills it permanently. Knowing the exact cell format is step one, full stop.
Tactical flashlights give clear signals when the battery is done:
Unnecessary battery replacements waste money and, for rechargeables, shorten total cycle life. Hold off on swapping cells when:
Primary cells (CR123A, AA alkaline) cannot be recharged — they are single-use. Rechargeable cells (18650, 21700, 16340) should go back to a dedicated charger rather than into the trash after every partial discharge. Premature disposal wastes both money and the remaining charge cycles a quality cell still has.
Battery replacement in a tactical flashlight needs minimal gear. Have these ready before starting:
The total cost of the essential kit is under $10. Skipping the alcohol and swabs saves nothing — contact corrosion from alkaline leakage can destroy an aluminum battery tube that costs more than the flashlight to replace.

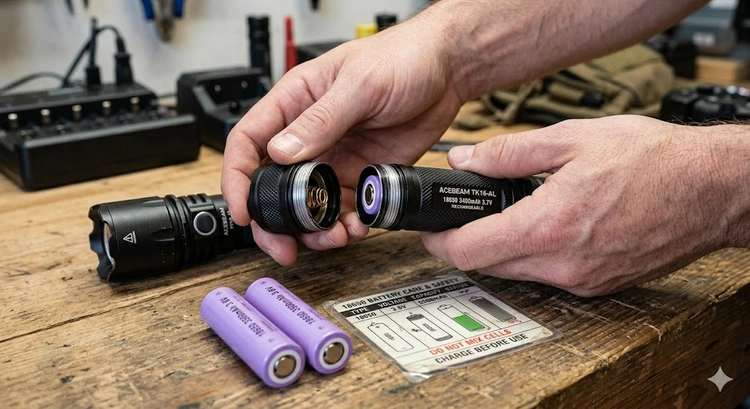

The large majority of tactical flashlights load cells from the tail end. Follow these steps in order:
Some tactical designs load cells from the bezel (head) end:
Head-load configurations appear in some 2×CR123A setups and older military-spec lights. They are less common in current tactical designs. Always confirm the correct loading end before applying torque — forcing the wrong end open damages threads.
Not all batteries perform equally across tactical flashlight applications. The right cell depends on the use case:
| Battery Type | Voltage | Rechargeable | Typical Capacity | Best For | Main Weakness |
|---|---|---|---|---|---|
| CR123A (lithium primary) | 3V | No | 1,500 mAh | Emergency kits, long-term storage, compact lights | Single-use cost accumulates |
| 18650 (Li-ion) | 3.6–4.2V | Yes | 2,500–3,500 mAh | Everyday carry, high-output lights | Requires a dedicated charger |
| 21700 (Li-ion) | 3.6–4.2V | Yes | 4,000–5,000 mAh | Maximum runtime, search and rescue | Larger body size required |
| AA Lithium (primary) | 1.5V | No | ~3,000 mAh | Remote locations, universal availability | Lower output ceiling |
| 16340 (Li-ion) | 3.6–4.2V | Yes | 650–1,000 mAh | Ultra-compact lights | Short runtime per charge |
For users prioritizing maximum throw and sustained high output, the best long throw flashlights consistently rely on 18650 or 21700 cells for the current headroom their high-drive LEDs require. Compact secondary lights and emergency kit lights favor CR123As for their shelf stability and smaller physical footprint.
When the flashlight manual doesn't specify, protected cells are the safer default. The marginal price difference is minimal compared to the cost of replacing a cell damaged by over-discharge.
Several persistent myths lead users to shorten battery life, damage cells, or ruin flashlight components. The corrections are simpler than the myths:
Good battery maintenance logic transfers across device categories. The same principles behind extending the battery life of a cordless vacuum — avoiding deep discharge, storing at partial charge, never mixing old and new cells — apply directly to rechargeable flashlight cells.
If fresh cells don't revive the light, dirty or corroded contacts are the most common culprit. Clean them before concluding the flashlight is broken:
If cleaning doesn't solve it, work through this checklist systematically:
If the light still won't fire after every item on this list has been addressed, the LED emitter or driver board has likely failed — a hardware problem that no battery change will resolve.
Most mid-range and high-end tactical flashlights use 18650 lithium-ion cells. Compact tactical models commonly use CR123A lithium primaries. Budget or dual-format lights may accept standard AA cells. The correct format is printed inside the battery tube, stamped on the tailcap, or listed in the product manual — check there first before purchasing replacement cells.
AA alkaline batteries work in lights specifically designed to accept them, but they are unsuitable for high-drain tactical models. Alkaline cells have high internal resistance and their voltage sags badly under the heavy current that turbo modes demand. For maximum output and reliability, lithium primaries or rechargeable lithium-ion cells are the correct choice.
Primary cells should be replaced when the light dims noticeably on high mode or after extended storage beyond one year. Rechargeable cells don't require physical replacement until capacity has degraded to roughly 70–80% of the original rated capacity — typically after 300 to 500 full charge cycles under normal use conditions.
No. Mixing brands with different internal resistance or rated capacity causes one cell to drain faster than the other. In multi-cell series configurations this creates the risk of cell reversal, which can cause leakage or a thermal event inside a sealed body tube. Always use matched cells — same brand, same model, charged to the same level.
With protected lithium-ion cells, the built-in protection circuit trips and the light won't power on — a safe failure mode that's easily corrected by reinserting the cell with correct polarity. With unprotected cells, a reversed installation creates a short circuit that heats the cell rapidly. Always confirm positive-end orientation before closing the tailcap.
Lithium cells — both primary CR123As and rechargeable 18650s — must not go into household trash or standard curbside recycling. Most hardware stores and electronics retailers maintain lithium battery recycling drop boxes. Tape the positive terminal with electrical tape before transport to prevent the terminal from contacting other metal objects and sparking.
Tactical lights with regulated drivers maintain consistent output until a low-voltage cutoff triggers, then step down sharply or shut off to protect the cell from over-discharge. Unregulated lights dim gradually as voltage drops. Quality tactical flashlights use regulated drivers, delivering rated brightness across the majority of the cell's usable capacity before the cutoff.
A flashlight that fails at the critical moment is just a tube of metal — replace cells on schedule, not in the dark.
 |
 |
 |
 |
