A neighbor grabbed a flashlight off the shelf last spring — 1,000 lumens on the box, looked impressive. Outdoors, the beam barely reached twenty feet before dissolving into ambient haze. Having flashlight specs explained in plain terms changes everything about how buyers shop for light. The flashlight category overflows with competing numbers, and most product listings feature whichever metric flatters the design most.

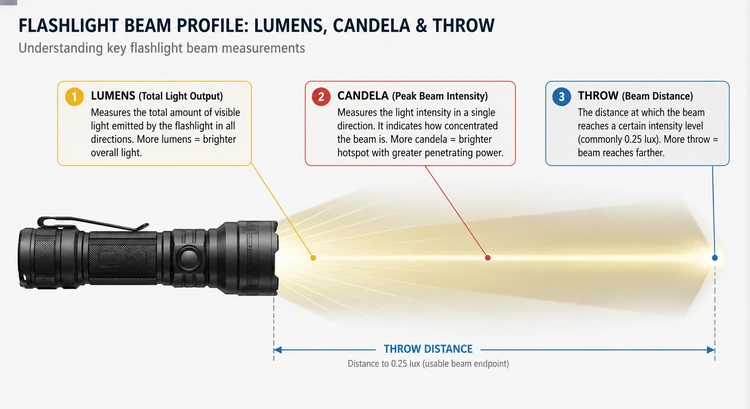

Three numbers define almost every flashlight on the market: lumens, candela, and throw distance. Each measures a different physical property of light. None of them tells the full story alone. Manufacturers routinely highlight whichever number looks largest — which makes cross-shopping confusing without a clear framework.
This guide breaks down each metric, explains how they interact, and shows which spec matters most for each use case. Any product listing becomes readable in under a minute once the underlying system clicks into place.
Contents
Before 2009, flashlight manufacturers printed any number they wanted on a box. A 200-lumen light might be labeled 500 lumens by one brand and 150 by another, depending entirely on where and how the measurement was taken. Consumers had no reliable baseline for comparison across brands.
The ANSI FL1 standard established a unified testing protocol for portable flashlights. It defines precisely how luminous flux, peak beam intensity, beam distance, impact resistance, and runtime are measured and reported. Most reputable brands now comply with FL1, which at least places competing products on the same footing.
Key FL1 testing conditions include:
Pro tip: If a flashlight listing doesn't mention ANSI FL1 compliance, the published lumen figures may be out-of-reflector or peak-burst measurements — often 30–50% higher than real-world output at 30 seconds.
FL1 covers six primary metrics: luminous flux (lumens), peak beam intensity (candela), beam distance (meters), runtime (hours), impact resistance (drop height in meters), and water resistance (IPX rating). It does not address beam quality, color temperature, color rendering index, tint consistency, or perceived brightness differences between users.
That gap matters considerably. Two flashlights with identical FL1 specs can produce noticeably different visual experiences based on emitter type, optic geometry, and LED tint binning. FL1 is a minimum standard, not a complete picture of performance. Understanding its limits helps buyers read spec sheets more critically rather than treating all FL1 numbers as equivalent.
The lumen comparison chart is a practical starting point for output ranges, but understanding the underlying units first makes those reference charts far more actionable. Getting the core terms straight eliminates most of the confusion that comes from reading flashlight spec sheets.
Lumens measure total luminous flux — the complete quantity of visible light emitted from the source in all directions. A 1,000-lumen flashlight produces 1,000 lumens regardless of whether those photons spray wide in a flood pattern or get collimated into a tight spot. Lumens answer one question: how much total light?
High lumen output benefits:
Lumens do not predict how far a beam reaches. Two 1,000-lumen lights with different optic designs can throw to entirely different distances. The lumen count alone reveals nothing about beam character.
Candela measures peak beam intensity — the luminous intensity at the center of the hotspot in one specific direction. A narrow optic concentrates lumens into a tight cone, producing very high candela from a modest lumen source. A flood optic spreads the same lumens wide, dropping candela dramatically. Candela answers a different question: how bright is the brightest point?
The historical relationship between candela and candlepower — and why older flashlight specs sometimes use different notation — is covered in depth in the lumens vs candlepower guide. Understanding that history clarifies why some vintage flashlight reviews reference numbers that seem incompatible with modern spec tables.

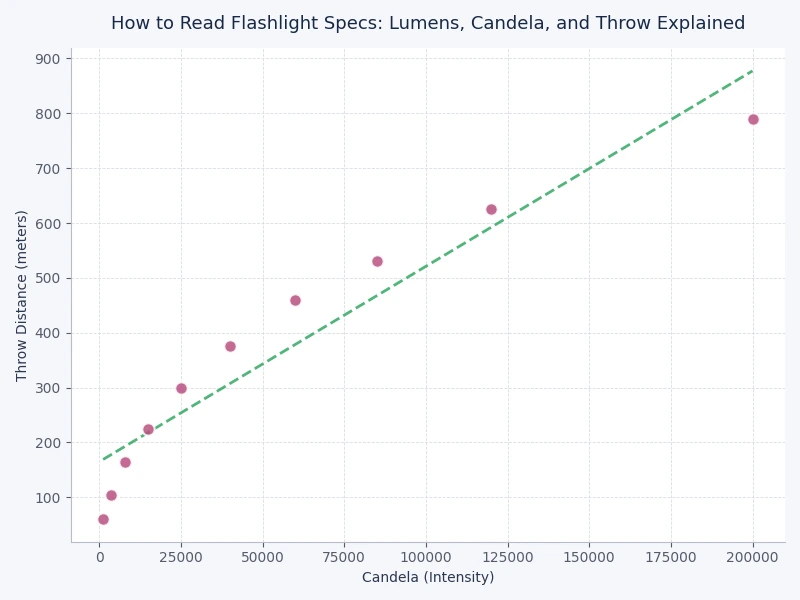

Throw distance (in meters) is derived directly from candela using the FL1 formula: throw = 2 × √candela. It represents the distance at which center-beam illuminance equals 0.25 lux — roughly the brightness of a full moon at ground level. High throw means a usable beam at long distances. It does not indicate brightness up close, and it says nothing about spill or flood coverage.
| Metric | Unit | What It Measures | Best Application | Typical Range |
|---|---|---|---|---|
| Lumens | lm | Total light output (all directions) | Area flood, task lighting, close range | 50–5,000+ lm |
| Candela | cd | Peak hotspot intensity (one direction) | Distance work, spotting, search | 500–300,000+ cd |
| Throw | m | Usable beam distance at 0.25 lux | Navigation, outdoor patrol, signaling | 50–1,000+ m |
| Runtime | hr | Duration until 10% initial output | Extended use planning, battery sizing | 0.5–200+ hr |
| CRI | Ra | Color rendering fidelity | Inspection work, detail tasks, medical | 70–97+ Ra |
Every metric has blind spots. Understanding them prevents over-relying on a single number when evaluating any light. No one spec captures the complete performance profile of a flashlight — each one trades coverage for precision in a specific dimension.
Lumens are the most intuitive spec for general consumers. They scale predictably: 500 lm is brighter than 250 lm. For indoor navigation, task lighting, and everyday carry situations where users need general visibility rather than long-range spotting, total lumen output is the most practical guide to start with.
Where lumens mislead: a 2,000-lumen floodlight and a 2,000-lumen thrower produce completely different beam profiles. Same lumen count, completely different visual experiences. Lumens alone cannot predict beam distance, hotspot intensity, or whether the light will be useful beyond ten meters.
Lumens also lose meaning at extreme outputs. The difference between 3,000 lm and 5,000 lm is less perceptible to the human eye than the difference between 100 lm and 500 lm. Logarithmic brightness perception means high-lumen comparisons are often less meaningful than the raw numbers suggest.
Candela — and by extension, throw distance — becomes the critical spec for any task involving distance. The numbers scale directly with real-world throw performance, making them far more predictive than lumens for outdoor use cases.
Scenarios where candela dominates:
Warning: Very high-candela throwers produce intense hotspots that can cause temporary flash blindness at close range — they are poorly suited for indoor reading, map work, or any task requiring close-focus vision.
A light rated at 300,000 cd can throw past 1,000 meters. That same light may only produce 1,500 lumens total — which sounds modest but performs spectacularly at distance. Comparing it to a 5,000-lumen floodlight using only lumens tells the wrong story in both directions.
High lumen output earns its place in specific use scenarios. Most buyers shopping for a flashlight for home emergencies — covered thoroughly in the emergency flashlight guide — benefit far more from 500–1,000 lumens with generous spill than from a narrow high-candela thrower that creates a tunnel-vision beam.
Scenarios where lumens lead:
For general home use, 300–800 lumens with a wide beam angle is more practical than 3,000 lumens concentrated into a 3° hotspot. More lumens is not always better. Beam character matters as much as raw output.
High-candela designs prioritize distance over coverage. They are engineered around deep parabolic reflectors or tight TIR optics that collimate output into a narrow, intense column. Spill light is minimal by design. Up close, they can feel underwhelming because so little light exits the sides of the beam cone.
EDC users who want a balanced profile — enough lumens for close tasks and enough candela for occasional distance work — will find the EDC flashlight guide useful for narrowing down beam profiles suited to daily carry. Most EDC-optimized lights target a moderate candela-to-lumen ratio rather than maximizing either extreme.
A useful orientation: lights under 10,000 cd are primarily flood-oriented. Lights from 10,000–50,000 cd are all-purpose with meaningful throw. Lights above 50,000 cd are specialist throwers where distance is the design priority.
Once flashlight specs are understood as a system, evaluating product pages becomes much faster. The key is knowing which numbers to extract first and which marketing language to skip past entirely.
A reliable 60-second spec evaluation runs three checks in sequence:
Several common patterns signal unreliable or unverified specs. These patterns appear frequently in budget imports and unbranded lights:
Reputable manufacturers publish complete FL1 spec tables covering all six metrics. If a listing shows only one or two numbers and uses vague qualifiers, the specs are likely unverified. Incomplete spec sheets are a reliable signal of unreliable specs.
FL1-rated lumen figures are measured at 30 seconds post-activation. Most high-output flashlights begin thermal stepdown well before the one-minute mark on turbo mode. Thermal stepdown is a built-in protection circuit that reduces output automatically as the emitter approaches its thermal ceiling — typically 45–55°C at the LED junction.
In practice, a 3,000-lumen turbo mode may stabilize at 800–1,200 lumens within two to three minutes of sustained use. This is by design, not a defect. A light that maintained 3,000 lumens indefinitely would overheat its emitter and fail prematurely. Buyers evaluating performance should focus on sustained output at high or medium mode, not peak turbo figures that represent a 30-second snapshot.
Thermal management quality varies significantly by form factor:
Tip: A flashlight that runs noticeably warm to the touch is working its thermal management system — this is expected on high-output models and indicates the heat is being drawn away from the emitter correctly.
FL1 specs are tested on fresh cells at room temperature under controlled conditions. Real-world performance deviates based on several factors that battery labels do not disclose:
Maintaining fresh, appropriately rated cells is the single most practical step for keeping any flashlight performing to its FL1 specs in the field. Mixing old and new cells in multi-cell lights creates imbalanced discharge and accelerates capacity degradation across the entire pack.
It depends entirely on the task. Lumens matter more for area flood and close-range illumination where broad coverage is needed. Candela matters more for distance work, spotting, and navigation where the beam must reach far. Most general-purpose buyers benefit from a balanced light that delivers adequate lumens for spill and sufficient candela for a useful hotspot beyond 30 meters.
The ANSI FL1 formula is: throw in meters = 2 × √candela. A light rated at 10,000 cd throws approximately 200 meters (2 × √10,000 = 200). This figure represents the distance at which center-beam intensity equals 0.25 lux — roughly full-moon illumination level at ground. The formula allows direct comparison of any two lights without needing real-world field testing.
Manufacturers sometimes omit candela when the ratio is unflattering — typically on floody lights with low peak intensity or on budget lights where the optic is not well-optimized. A complete ANSI FL1 spec sheet always includes both. When candela figures are absent, buyers can estimate beam character from published beam angle in degrees if that figure is provided instead.
High-CRI emitters (90+ Ra) often produce slightly fewer lumens than equivalent low-CRI bins at the same power draw due to phosphor efficiency trade-offs. CRI does not directly affect candela or throw distance. However, perceived brightness and fine detail visibility often improve with high-CRI light because color rendering accuracy reduces the visual effort required to interpret a scene.
For most EDC applications, 300–800 lumens covers the practical range of daily tasks. Pocket lights in this output range run significantly longer on compact cells and generate manageable heat. Turbo modes up to 1,500–2,000 lumens add situational utility without being necessary for routine daily use. Above 1,000 lumens, battery runtime and thermal stepdown become more limiting factors than raw output.
Yes. A light emitting only 300 lumens through a deep parabolic reflector and a small-die emitter can produce 50,000+ candela, throwing usably past 450 meters. Classic long-range throwers use a single high-intensity emitter and a large smooth reflector to maximize candela at the expense of total output and spill. Low total lumen count combined with extreme peak intensity is the defining characteristic of dedicated thrower designs.
Body material does not change FL1-measured specs, which are tested under controlled conditions. However, it significantly affects how long a light sustains those specs in real use. Aircraft-grade aluminum (6061 or 7075 alloy) dissipates heat faster than zinc alloy or polycarbonate, allowing high output modes to run longer before thermal stepdown engages. Better thermal management means published specs remain accurate for a larger portion of any given runtime.
 |
 |
 |
 |
