Last summer, a neighbor called me in a panic after her HVAC tech had just finished installing a new mini-split. The unit wasn't cooling, and she couldn't figure out why. After some digging, it turned out the technician had rushed through the vacuum stage — and the whole system was contaminated with moisture. Knowing how long should AC vacuum hold — and what a proper hold test looks like — could have saved her a costly callback. Whether you're supervising a contractor or doing the work yourself, this is one spec you cannot afford to guess. It fits right alongside the rest of your home maintenance routine.
Pulling a vacuum on an AC system removes moisture, air, and non-condensables from the refrigerant circuit before you charge it. If moisture stays in the system, it mixes with refrigerant and forms corrosive acids that eat through the compressor from the inside out. A proper vacuum pull and hold test verifies the system is sealed, dry, and ready for refrigerant. If you've ever wondered how many microns is a good vacuum level, that answer connects directly to how long you need to hold the vacuum to confirm the job is done right.
Most HVAC professionals agree on minimum hold times, but the exact standard depends on system size, ambient humidity, and how deep your vacuum actually reached. This guide breaks it all down — tools, steps, numbers, and the myths that send techs and homeowners down the wrong path.
Contents

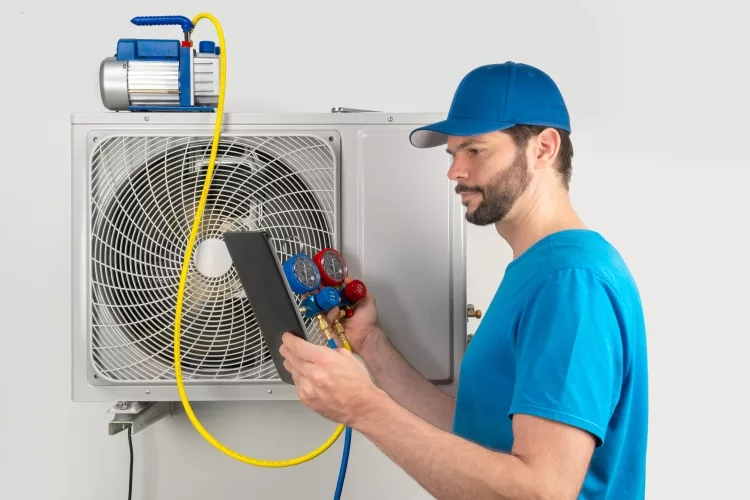

The vacuum hold test is the final verification step before you add refrigerant. After pulling the system down to target depth, you isolate the vacuum pump and watch the micron gauge for a set period. The system must hold — meaning the micron reading stays stable or rises only minimally — to confirm there are no leaks and no trapped moisture working its way out.
Time matters because moisture does not disappear instantly. Even after you reach a deep vacuum quickly, residual moisture trapped in metal pores, fittings, and compressor oil needs sustained low pressure to boil off and get evacuated. Rushing the hold period is one of the most common — and most expensive — mistakes in HVAC work.
A passing hold test means your micron reading rises no more than 100–200 microns over 15 minutes after you isolate the pump. If the reading climbs continuously without leveling off, you have either a leak or trapped moisture that hasn't fully evacuated — and you need to identify which before you charge.
Pro tip: Never rely on an analog manifold gauge needle to confirm a hold test — it simply cannot read the micron-level precision you need. Always use a dedicated digital micron meter.
You cannot do this job with the wrong equipment. Cutting corners on tooling is one of the fastest ways to get a false pass and end up with refrigerant contamination that won't show up until the system fails in the field — usually at the worst possible moment.
Your vacuum pump is the foundation of the entire process. For residential work, a two-stage rotary vane pump rated at 4–8 CFM is standard. Single-stage pumps struggle to consistently reach the micron levels modern systems require, especially in humid conditions.
If you're doing electrical diagnostics alongside HVAC work — checking components before opening the refrigerant circuit — a resource like how to test a fuse with a multimeter helps you rule out electrical faults before you touch the refrigerant side.
Your manifold gauges tell you system pressure during charging and recovery. Your micron meter tells you the actual vacuum depth in microns of mercury (µmHg). These are two different tools solving two different problems — and you need both.
Here's exactly how to execute a vacuum pull and hold test from start to finish. Follow these steps in order. Skipping any single step undermines the integrity of the whole process.
Warning: Never pull a vacuum on a system that still contains refrigerant — you will contaminate your pump oil and violate EPA Section 608 refrigerant handling regulations. Always recover refrigerant with an approved machine first.
Understanding the actual specifications removes guesswork from the hold test entirely. These are the industry-consensus benchmarks — not rules of thumb, but figures backed by manufacturer specifications, ASHRAE guidelines, and field-tested practice.
The deeper your vacuum, the more thoroughly you remove moisture and air. But "deep enough" depends on context. A new system installed on a dry winter day has different requirements than a system opened after a leak repair in August humidity.
The table below shows industry-consensus hold times based on system type and condition. These are minimums — experienced technicians routinely extend beyond them because the time cost is negligible compared to a compressor replacement.
| System Type / Condition | Target Micron Level | Minimum Hold Time | Pass Criteria |
|---|---|---|---|
| New residential install, small system (<2 tons) | 500 µm or below | 15 minutes | Rise < 200 µm, then stabilizes |
| New residential install, large/multi-zone | 500 µm or below | 30 minutes | Rise < 200 µm, then stabilizes |
| System opened for repair, dry climate | 300 µm or below | 20 minutes | Rise < 100 µm, then stabilizes |
| System opened for repair, humid climate | 250 µm or below | 30–45 minutes | Rise < 100 µm, then stabilizes |
| Known moisture contamination present | 250 µm or below | 45–60 minutes | Reading levels off below 500 µm |
| Commercial or large-capacity systems | 500 µm or below | 60+ minutes | Stable reading with no leak indicators |
A compressor for a mid-size residential system costs $800–$1,500 in parts alone, plus labor and refrigerant. The cost of holding your vacuum for an extra 20 minutes is zero. The math is not complicated.
Theory is useful. What actually plays out in the field is more instructive. These two scenarios illustrate exactly where things go right and where they fall apart — and why the hold test is the single most important step in any refrigerant circuit service.
A homeowner had a new ductless mini-split installed by a budget contractor. The unit ran fine for the first two months, then progressively lost cooling capacity through the season. When a second technician came out and connected a micron meter, the system was sitting above 2,000 microns — a clear sign the original contractor had never completed a proper vacuum hold test.
A DIYer in the Southeast replaced a service valve on his R-410A system in August — peak humidity season. He knew that opening the refrigerant circuit in those conditions meant significant moisture ingress, so he adjusted his approach accordingly.
The system has run cleanly for two full cooling seasons with no performance issues. The extra time he invested in the hold test was the entire difference between a lasting repair and a repeat service call. Just as you'd verify a component with the right diagnostic tool before condemning it — the way you'd use a guide on how to test a thermal fuse before replacing a whole assembly — the hold test is your verification that the vacuum work actually accomplished what you needed.
There is a lot of bad information in circulation about vacuum pulls, especially in DIY communities and among shortcuts-focused contractors. These myths cost real money when people act on them.
The logic goes: warm temperatures lower the boiling point of water, so moisture evaporates faster in summer, meaning you can pull a shallower vacuum and hold it for less time. This is incorrect.
Some technicians claim that if a system was open for only a minute or two during a quick part swap, a full vacuum pull and hold test is unnecessary. This is a shortcut that will eventually cost someone a compressor.
For most residential systems, the vacuum should hold for a minimum of 15 to 30 minutes after isolating the pump. Larger systems and those exposed to moisture or high humidity require 45 to 60 minutes. The micron reading must stabilize — meaning it stops rising or rises less than 200 microns — before the test is considered passed. Never charge a system that has not completed a confirmed hold test.
The industry standard target is 500 microns or below for a new installation under normal dry conditions. For systems that have been opened for repair, or in high-humidity environments, target 250 to 300 microns before beginning the hold period. The lower the micron level you achieve before isolating the pump, the more thoroughly you have removed moisture and non-condensables from the circuit.
A steady continuous rise in micron level after isolating the pump points to either a refrigerant circuit leak or trapped moisture still evacuating. If the reading climbs quickly and does not stabilize, suspect a leak — pressure test with nitrogen and use leak detection spray to locate it. If the reading rises slowly and then plateaus, moisture is the more likely cause and you should continue pulling the vacuum until the system reaches target depth and holds.
No. A standard manifold gauge reads in PSI and inches of mercury — far too coarse to detect the difference between 300 and 800 microns. You must use a dedicated digital vacuum gauge (micron meter) for any meaningful hold test result. Relying on a manifold gauge needle for this purpose gives you false confidence and no real data about system condition.
Temperature has a minor influence on how quickly surface moisture evaporates during evacuation, but manufacturers and industry standards do not adjust hold time requirements based on ambient temperature. In practice, high summer humidity makes proper hold times more critical — not less — because open service ports admit moisture faster in humid conditions than in dry ones.
No. Pulling a vacuum on a system that contains refrigerant will contaminate your vacuum pump oil with refrigerant, severely degrading pump performance. It also violates EPA Section 608 regulations, which require certified technicians to recover refrigerants before any service work that opens the circuit. Always use an approved refrigerant recovery machine first, confirm the system is fully recovered, then proceed with your vacuum pull.
 |
 |
 |
 |
