How Does a Shop Vacuum Work

Ever stared at a pile of sawdust, construction debris, and wet grit and wondered if your regular vacuum could handle it? It can't — and understanding how shop vacuums work explains exactly why they exist as a separate category of tool. Shop vacs are purpose-engineered machines built for volume, weight, and material diversity that would destroy a standard household vacuum in a single pass. Whether you're outfitting a garage, tackling a renovation cleanup, or simply building out your cleaning toolkit, knowing what's happening inside the machine helps you use it smarter and maintain it longer.

A shop vacuum isn't just a bigger version of an upright. It uses a fundamentally different airflow design, a higher-torque motor, and a filtration system built for coarse, heavy, and even liquid material. The engineering choices that make a shop vac effective also create specific requirements around usage and maintenance — get those wrong, and you'll burn out a motor or ruin a filter in short order.

This guide breaks down the internal mechanics, the key trade-offs between shop vacs and residential vacuums, the most common user mistakes, and a practical long-term maintenance strategy. By the end, you'll have a clear picture of what this tool can and can't do — and how to get the most from it.

What a Shop Vacuum Actually Is

The shop vacuum — commonly called a wet/dry vac or simply a shop vac — is a heavy-duty suction tool designed for workshop, job site, and demanding home-use tasks. It's built around a large-capacity drum or tank, a high-torque motor, and a filtration system engineered to handle particulate matter far too coarse, heavy, or wet for any residential model to safely manage.

You'll find them in garages, basements, renovation sites, and workshops. They range from compact 2-gallon portable units to commercial 20-gallon drum models. The fundamental design goal is straightforward: move high volumes of air with enough force to lift and carry material that no household vacuum can touch.

The Core Components

Every shop vacuum shares the same basic architecture, regardless of brand or price point. These are the parts you need to understand:

• Motor and impeller assembly — The core of the machine. A high-wattage motor spins a fan (impeller) at high RPM to generate suction by moving air rapidly through the sealed system.
• Collection tank — The drum or canister that holds debris or liquid. Usually made from polyethylene plastic or stainless steel for durability.
• Filter — Positioned between the tank and the motor. It captures debris before it can reach and damage the impeller blades.
• Inlet port — The connection point for the hose. Typically 1.25" to 2.5" in diameter depending on model size and intended use.
• Exhaust port — Where filtered air exits the unit after passing through the system. On many models, this port doubles as a blower outlet.
• Float shutoff valve — A safety mechanism inside the tank that automatically blocks airflow when the liquid level reaches a critical point, preventing liquid from reaching the motor.
• Hose and attachments — The flexible conduit connecting the pickup point to the tank. Attachments extend the tool's range across surfaces and debris types.

How It Differs from a Standard Vacuum

Standard vacuums are engineered for fine dust, pet hair, and carpet fibers in a home environment. Shop vacuums are built for volume, material weight, and versatility. The differences run deep:

If you've ever disassembled a standard upright to diagnose a suction problem, you'll immediately recognize how different the internal layout is. The guide to disassembling a Hoover WindTunnel vacuum gives a useful look at how residential vacuum internals are arranged — the contrast with a shop vac's open-tank design is striking.

How Shop Vacuums Work: Inside the Machine

This is where it gets interesting. How shop vacuums work comes down to one elegant mechanical principle: the motor-driven impeller creates a low-pressure zone inside the sealed tank, and atmospheric pressure outside the unit rushes in to equalize it. Anything in the path of that incoming airstream — dust, liquid, debris — gets carried into the tank. Simple in concept. Impressively effective in execution.

The Suction Process Explained

Here's exactly what happens from the moment you flip the switch:

1. Motor activates — The electric motor powers up and begins spinning the impeller at high speed, typically several thousand RPM.
2. Impeller displaces air — The spinning fan blades expel air from the sealed chamber surrounding the motor, creating a partial vacuum — a zone of lower pressure — inside the tank.
3. Atmospheric pressure compensates — Air outside the unit, at higher ambient pressure, rushes in through the hose inlet to equalize the pressure difference. This is the suction you feel at the nozzle end.
4. Debris rides the airstream — Dust, sawdust, liquid, small stones, and other debris in the path of the incoming air get swept along into the collection tank.
5. Air is filtered before the motor — Before air reaches the impeller, it passes through the filter, which strips out particulate matter. Clean air then exits through the exhaust port.

Two measurements determine real-world pickup performance. CFM (cubic feet per minute) tells you how much air the machine moves — higher CFM means more volume of debris carried in per second. Water lift (sealed suction, measured in inches of water column) tells you how hard the machine pulls — critical for lifting dense material or maintaining suction through a partially blocked hose. Most general-purpose shop vacs balance both. Specialized models lean toward one or the other depending on application.

Filtration and Collection

The filter is what prevents the motor from self-destructing. Without it, every particle the machine picks up would pass directly through the impeller. Here's how the filtration layers typically work:

• Cartridge filter — The most common type. A pleated paper or synthetic element that captures fine-to-medium particles while allowing air to flow. Used for dry debris only.
• Foam sleeve — A sponge-like pre-filter that wraps around the cartridge or sits in its place. Repels liquid while allowing airflow. Essential for wet pickup.
• Collection bag (optional) — A liner that sits inside the tank. It contains fine debris for cleaner disposal and reduces how much dust contacts the filter directly, extending filter life.
• HEPA-rated filters — Available on some models. Capture particles as small as 0.3 microns at 99.97% efficiency. Strongly recommended for drywall dust, fine silica, or any material with health implications.

Fine construction dust is a genuine health hazard. According to OSHA's guidelines on crystalline silica, dust from concrete, masonry, and similar materials poses serious respiratory risks with repeated exposure. A shop vac with proper filtration is one of the practical dust control measures recommended for workers in these environments.

Wet vs. Dry Operation

Wet pickup is one of the defining capabilities of a shop vac — and one that requires a specific setup every time you switch modes. Skip the setup, and you'll damage your filter or reduce your machine's lifespan.

To switch from dry to wet pickup:

1. Turn off and unplug the machine
2. Remove the paper cartridge filter — water will saturate and collapse it
3. Install the foam sleeve in its place — it repels liquid while maintaining airflow
4. Make sure the tank is empty before starting wet pickup
5. Monitor the tank level — the float shutoff will stop suction automatically when it's nearly full
6. After wet use: empty the tank, rinse if needed, and allow it to dry completely before switching back to dry operation

One important note: some shop vacs designed specifically for wet pickup can operate without any filter for liquid-only tasks. Check your model's manual before running filterless — it's model-specific guidance, not a universal rule.

Shop Vacuum vs. Regular Vacuum: Weighing the Trade-offs

Shop vacs aren't a universal replacement for household vacuums, and a household vacuum is never a safe substitute for a shop vac in heavy-duty conditions. Both tools have a defined role. Understanding the trade-offs helps you decide when each belongs in your hand.

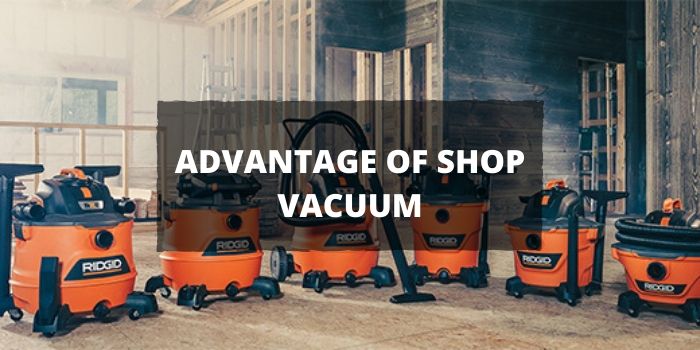

Key Advantages

Here's what genuinely sets a shop vacuum apart from everything else in the cleaning tool category:

• Handles liquids — Spills, basement flooding, wet sawdust — none of these end the job. They're the job.
• Large capacity — You can vacuum an entire project without stopping to empty the tank every few minutes. Some models hold 16 gallons or more.
• Built for sustained use — Reinforced tanks, industrial hoses, and high-torque motors are designed for continuous operation, not the occasional light pass over carpet.
• Works on any surface — Concrete, tile, hardwood, gravel, upholstery — the surface type doesn't limit what you can pick up.
• Blower capability — Most models let you reverse the hose to the exhaust port, converting the vac into a blower for clearing leaves, debris from tight spaces, or drying surfaces.
• Wide attachment ecosystem — Crevice tools, squeegee nozzles, floor brushes, car detail kits — shop vacs have a broad accessory range.

Pro tip: When working with fine drywall dust or wood sanding residue, always use a HEPA-rated filter or add a collection bag — a standard cartridge alone will let ultrafine particles recirculate through the exhaust into the air you're breathing.

If you want to see these advantages compared across real models, the portable shop vac buying guide evaluates six units side by side with specs and performance notes.

Limitations to Consider

Knowing what a tool can't do is just as important as knowing what it can. Shop vacuums have real limitations:

• Bulky and heavy — Especially when the tank is full. Carrying a 16-gallon drum of wet debris up stairs is not a casual task.
• Loud operation — Most units run at 75–85 dB — significantly louder than a standard residential vacuum. Hearing protection is worth considering for extended use.
• Weak on carpet — No rotating brush agitator means they don't work carpet fibers the way an upright does. Surface-level carpet debris: fine. Deep carpet cleaning: not their strength.
• Filter management required — You need to actively manage which filter is installed based on the task. It's a two-minute process, but skipping it has consequences.
• Exhaust can redistribute fine dust — If the filter isn't rated for the debris you're picking up, the exhaust port can push fine particles back into the air rather than capturing them.

Mistakes That Can Damage Your Shop Vac

Most shop vac failures are user errors, not product defects. The machine is usually more durable than the habits around it. These are the mistakes that show up most consistently — and cost the most to fix.

Filter and Bag Errors

• Using a paper cartridge filter for wet pickup — Paper saturates within seconds, collapses against the intake, and cuts airflow to almost nothing. Always switch to the foam sleeve before picking up any liquid.
• Running completely without a filter — Fine particles travel directly to the motor and impeller. Even a single session of filterless dry pickup can score impeller blades or cause motor failure.
• Never cleaning the filter — A clogged cartridge filter reduces suction dramatically. Tap it clean over a trash can after every few uses. Don't wait until you notice performance loss — that loss means you've been working your motor harder than necessary.
• Using an incompatible bag size — A bag that doesn't seal properly around the tank inlet allows fine dust to bypass it entirely and go straight to the filter. Check the bag sizing for your specific model before purchasing.

General Usage Mistakes

• Vacuuming fireplace ash without a fine-dust bag — Ash is among the finest particulates you can encounter. A standard cartridge filter won't fully capture it. Use a fine-dust collection bag rated for ash, or you'll find it recirculating through the exhaust.
• Picking up sharp objects without caution — Metal shavings, drywall screws, and broken glass can puncture hoses or nick impeller blades. A debris trap accessory between the hose and tank inlet is worth considering for these materials.
• Ignoring the float shutoff — If the tank overflows because you didn't monitor it and the float shutoff malfunctions, liquid reaches the motor. Always empty the tank when the shutoff triggers — don't just restart the machine.
• Using an undersized extension cord — Shop vac motors draw significant current (8–15 amps is common). A cord too thin for the amperage causes voltage drop, heat buildup, and can trip breakers or damage the motor over time. Use a cord rated for the machine.
• Vacuuming flammable materials — Gasoline, lacquer thinner, paint solvent, and aluminum or magnesium powder can ignite from motor sparks or static discharge inside the hose. This is a fire and explosion risk, not a maintenance issue. These materials require explosion-proof or intrinsically safe equipment.

Matching the right tool to the right task applies across every cleaning scenario. The same logic that prevents shop vac damage also applies to general cleaning strategy — this spring cleaning guide covers how to approach different surfaces and messes with the right equipment from the start.

Keeping Your Shop Vac Running at Peak Performance

A shop vacuum is a durable tool, but durability isn't the same as maintenance-free. Long-term performance depends almost entirely on a few consistent habits applied regularly. None of it is complicated or time-consuming — the investment is small, and the payoff is years of reliable service.

Routine Maintenance Schedule

Build these checks into your regular workflow:

• After every use:
  • Empty the tank fully — never store the unit with debris or liquid inside
  • Wipe down the tank interior with a dry cloth after wet pickup
  • Check the hose for obstructions before putting it away
• Every 5–10 uses (or when suction noticeably drops):
  • Remove the cartridge filter and tap it firmly against the inside of a trash can to dislodge debris
  • Inspect the filter for tears, holes, or deep discoloration that won't tap out
  • Check attachment connections for wear, cracking, or poor fit
• Monthly:
  • Inspect the full length of the hose for cracks, soft spots, or internal collapse — both reduce suction significantly
  • Wash the tank with mild detergent and rinse thoroughly if you've done any wet pickup
  • Check the power cord near the plug and near the motor housing for fraying or damage
• Annually or when performance degrades noticeably:
  • Replace the cartridge filter outright — pleated filter media degrades over time even with regular cleaning
  • Inspect the impeller if accessible on your model — look for debris buildup or chipped blades
  • Replace any cracked or stiffened hose segments

Accessories That Extend Capability

The right accessories don't just add convenience — they actively protect the machine and extend its useful life. These are the additions worth prioritizing:

• Foam sleeve — Non-negotiable if you ever pick up liquids. Always have a spare on hand.
• Fine dust collection bag — Simplifies disposal and dramatically reduces how much particulate contacts the filter. Worth using for any fine dry material.
• HEPA filter upgrade — If you work with drywall, wood sanding dust, or any silica-containing material, this is a health and equipment protection decision, not just a performance one.
• Cyclone dust separator — A pre-separator that mounts between the hose and tank inlet, spinning heavy debris out centrifugally before it reaches the filter. Extends filter life significantly and maintains stronger suction over longer sessions.
• Squeegee nozzle — Makes liquid pickup on flat surfaces like garage floors much faster and more complete.
• Auto-start power outlet — Present on some shop vac models, this outlet starts the vac automatically when a connected power tool (sander, circular saw) runs, and stops it when the tool stops. Particularly useful for dust collection during sanding.
• Crevice tool — For vehicle interiors, tight corners, and areas the standard nozzle can't reach.

Choosing the right tool for the surface you're cleaning extends beyond vacuums. If you're cleaning up after a flooring project, for instance, the approach for vinyl plank flooring differs from hardwood — knowing both the vacuum capability and the surface requirements prevents damage.

Frequently Asked Questions

Next Steps

1. Audit your current filter setup — If you already own a shop vac, check that you have both a cartridge filter for dry use and a foam sleeve for wet use. Replace either component if it shows wear, tears, or discoloration that won't clean out.
2. Match your next purchase to your actual use case — If you need wet pickup, prioritize a model with a reliable float shutoff and included foam sleeve. If fine dust is your main concern, look for HEPA-rated filter compatibility before buying.
3. Add a cyclone dust separator to your kit — If you use your shop vac regularly for sanding or drywall work, a pre-separator dramatically extends filter life and keeps suction stronger across longer sessions. It's one of the highest-value accessories you can add.
4. Set a monthly maintenance reminder — Schedule a quick check of the hose, filter condition, and tank interior. Most shop vac failures are preventable with five minutes of routine inspection.
5. Explore portable models if size is limiting you — If your current unit is too cumbersome for your typical jobs, or you need something more maneuverable for vehicle detailing or tight spaces, review the portable shop vac options with specs calibrated to different workload sizes.
