According to FBI crime statistics, a home without a security camera system is approximately 300% more likely to be targeted by burglars than one with visible surveillance equipment. Learning how to set up a home security camera system has become an essential skill for modern homeowners, and the process is far more straightforward than most people assume. Whether pairing cameras with a smart home ecosystem or running a standalone setup, the right approach starts with understanding the core components and installation sequence before ever mounting a single bracket.
The modern security camera landscape includes wireless battery-powered units, PoE (Power over Ethernet) wired cameras, and hybrid systems that blend both technologies. Each type carries distinct trade-offs in terms of reliability, video quality, and installation complexity that deserve careful evaluation before purchasing. For those already invested in voice assistant platforms, integrating cameras with existing devices — as outlined in this guide on connecting smart home devices to Alexa — can unlock powerful automation features like real-time alerts and hands-free monitoring.
This guide walks through every phase of planning, installing, and optimizing a home security camera system, from selecting hardware to fine-tuning motion detection zones for minimal false alerts.
Contents
Before purchasing any equipment, it helps to understand the fundamental differences between camera technologies, since the choice of system type dictates every subsequent installation decision from cabling to cloud storage.
The two primary categories — wired PoE and wireless Wi-Fi cameras — each suit different use cases and property layouts.
Most seasoned installers recommend PoE for permanent, high-priority locations like front doors and driveways, while reserving wireless units for interior monitoring or rental properties where drilling is impractical.
| Resolution | Bandwidth per Camera | Storage per Day (continuous) | Best Use Case |
|---|---|---|---|
| 1080p (2 MP) | 2–4 Mbps | 15–25 GB | Indoor monitoring, budget setups |
| 2K (4 MP) | 4–8 Mbps | 30–50 GB | General outdoor coverage |
| 4K (8 MP) | 8–16 Mbps | 60–100 GB | License plate capture, wide-area detail |
Storage options typically fall into three buckets: local microSD cards (convenient but vulnerable to theft), NVR/NAS hard drives (reliable with higher capacity), and cloud subscriptions (accessible anywhere but carrying ongoing monthly costs). Many homeowners opt for a combination of local and cloud storage to ensure redundancy in the event that physical hardware is stolen or damaged during a break-in.
Knowing how to set up a home security camera system effectively means understanding that placement matters as much as the hardware itself. A $400 camera pointed at a fence provides less security value than a $60 camera covering the front door, where the U.S. Department of Justice reports most forced entries occur.
Outdoor cameras should cover these locations in order of priority:
For more granular guidance on angles, mounting heights, and avoiding blind spots, the companion article on home security camera placement tips covers field-of-view calculations and common mistakes in detail. Pairing cameras with outdoor security lighting dramatically improves nighttime image quality, even on cameras equipped with infrared night vision.

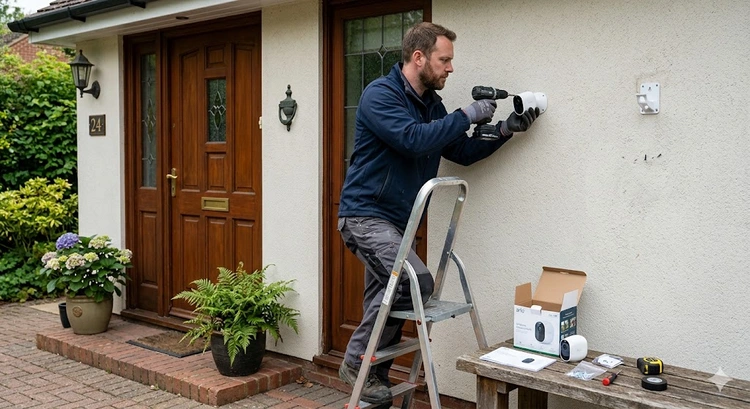

Pro tip: Mount outdoor cameras at 8–10 feet above ground level, angled slightly downward — this height prevents easy tampering while still capturing facial detail at the door.

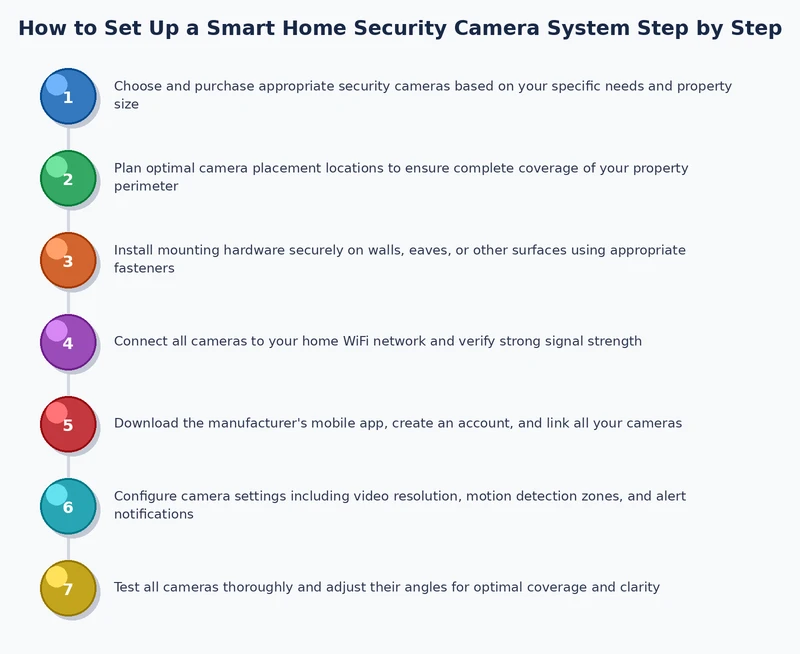

With hardware selected and placement mapped out, the actual installation process follows a predictable sequence regardless of camera brand or system type.
After completing the initial setup, linking cameras to a voice assistant platform enables hands-free live view on smart displays and integration with broader home automation routines.
Self-installed security camera systems have surged in popularity, but they carry both meaningful benefits and notable constraints compared to professionally monitored alternatives.
Advantages:
Limitations:
For many households, the ideal compromise involves a DIY camera system paired with a self-monitoring service that provides optional professional dispatch for a fraction of traditional monitoring costs.
A security camera system is not a set-and-forget installation; ongoing maintenance directly impacts reliability, image quality, and cybersecurity posture over the long term.
Most NVR systems support 8 to 16 channels, meaning homeowners can start with three or four cameras and add units incrementally as they identify coverage gaps or expand to outbuildings. When scaling, it helps to standardize on a single manufacturer's ecosystem to consolidate app management and ensure seamless integration between older and newer camera models.
Additional expansion opportunities include integrating video doorbells at secondary entrances, adding pan-tilt-zoom cameras for large backyards, and connecting motion-activated floodlight cameras that combine illumination with surveillance in a single weatherproof housing. Each addition should be mapped back to the original site survey to confirm that the network bandwidth and storage capacity can accommodate the increased video load without degrading performance on existing cameras.
Most single-family homes achieve comprehensive coverage with four to six cameras, focusing on the front door, back door, driveway, and any ground-floor windows not visible from the street. Larger properties or those with detached garages may require eight or more units for complete perimeter coverage.
Wired systems with local NVR storage can record and store footage without an internet connection, though remote viewing and push notifications require active internet access. Some cameras also support local microSD recording as an offline fallback during temporary outages.
For most residential applications, 2K (4 MP) resolution offers the best balance of image detail and storage efficiency, providing clear facial recognition and license plate readability without overwhelming network bandwidth or hard drive capacity the way 4K streams can.

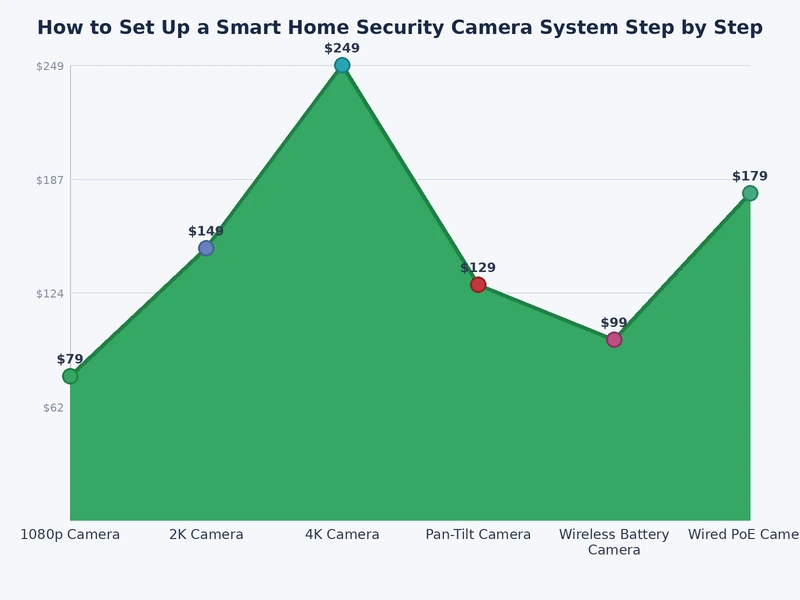

A basic four-camera wireless system starts around $150–$300, while a four-camera PoE system with NVR typically ranges from $300–$600, not including optional cloud storage subscriptions that average $3–$10 per camera per month depending on the manufacturer.
Research consistently shows that visible security cameras serve as a significant deterrent, with studies from the University of North Carolina indicating that roughly 60% of convicted burglars reported they would choose a different target upon discovering a camera system in place.
 |
 |
 |
 |
