Have home intruders or stumbling guests ever made anyone wish the front path just lit itself up the moment someone walked by? Our team has found, after testing dozens of fixtures, that a well-chosen outdoor motion sensor light delivers exactly that — automatic, reliable illumination precisely when it matters most. Knowing how to install outdoor motion sensor light fixtures is one of the highest-impact weekend projects a homeowner can tackle, and it requires far less electrical expertise than most people assume. The right fixture, the right location, and a clear sequence of steps make the difference between a project that wraps up in an afternoon and one that drags on for days.
Our team has helped readers work through the full spectrum of home lighting decisions, from layering light sources in a living room to selecting recessed fixtures for any room, and outdoor motion sensor lights consistently generate the most installation questions. The combination of security, energy savings, and convenience makes them worth every minute of setup time. Most people are genuinely surprised at how manageable the process becomes once the fixture type and mounting position are settled.
Before jumping into the installation itself, understanding which power source suits the location — wired, solar, or plug-in — saves considerable time and avoids costly returns. Our guide covers all three scenarios, though wired fixtures dominate most permanent outdoor setups because of their consistent brightness and long-term reliability. The outdoor security lighting category is an excellent companion resource for anyone whose goals extend beyond a single fixture installation.
Contents

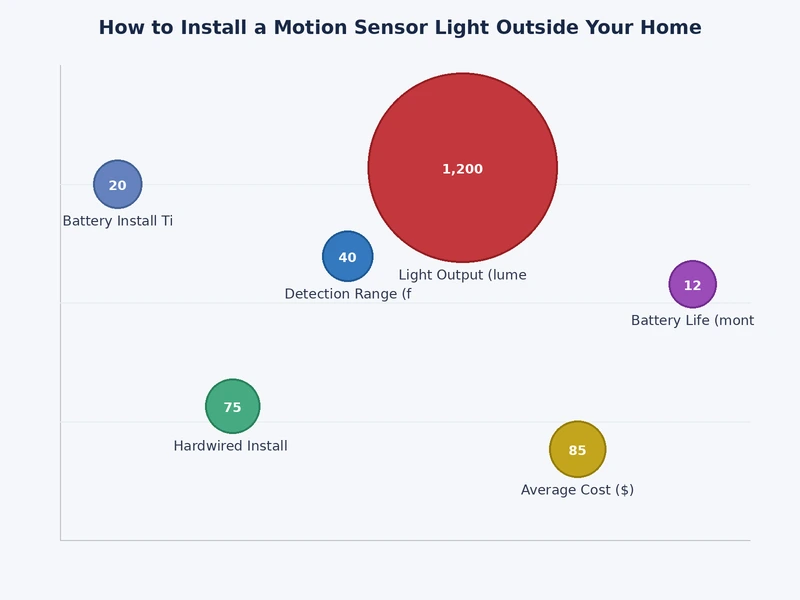

Choosing the right power platform before learning how to install outdoor motion sensor light fixtures prevents costly restarts and frustrating returns to the hardware store. Wired units connect directly to an existing junction box or outdoor electrical circuit, delivering consistent brightness — typically 1,500 to 5,000 lumens — regardless of weather or season. Solar-powered fixtures have improved significantly in recent product cycles, but our team's hands-on experience confirms they still underperform in shaded areas or during extended periods of overcast weather, making them most reliable in open, south-facing locations. Plug-in models occupy a useful middle ground: no wiring required, but range is limited to wherever an outdoor GFCI outlet already exists.
| Type | Typical Lumens | Installation Complexity | Weather Dependency | Best For |
|---|---|---|---|---|
| Wired | 1,500–5,000 | Moderate (requires breaker shutoff) | None | Permanent, high-traffic locations |
| Solar | 400–1,200 | Low (no wiring) | High | Open, sunny spots; supplemental use |
| Plug-In | 600–2,000 | Very Low | None | Covered patios near GFCI outlets |
Passive infrared sensors — commonly called PIR — detect body heat moving across their detection zone and dominate the residential market because they are inexpensive, accurate, and resistant to false triggers from wind-blown foliage. Microwave sensors cast a wider detection field that penetrates solid materials, making them valuable for garage installations where a parked vehicle might otherwise block PIR coverage entirely. Dual-technology fixtures require both sensor types to trigger simultaneously, which nearly eliminates false activations at the cost of a modest price premium. For most front-porch and driveway applications, a quality PIR fixture in the 180-degree detection range covers every practical scenario without overcomplicating the setup. According to the U.S. Department of Energy, motion-activated lighting can reduce outdoor lighting energy consumption by up to 35 percent compared to fixtures that remain on throughout the night.
A standard installation calls for a flathead and Phillips screwdriver, needle-nose pliers, a wire stripper, a non-contact voltage tester, and weatherproof wire connectors rated for wet locations. The mounting bracket ships inside the fixture box in nearly every case. Our team strongly recommends picking up a tube of exterior silicone caulk to seal around the fixture's canopy after mounting — a step that manufacturers include in their instructions but that many people skip, leaving a gap through which water infiltrates the junction box over time and causes corrosion.

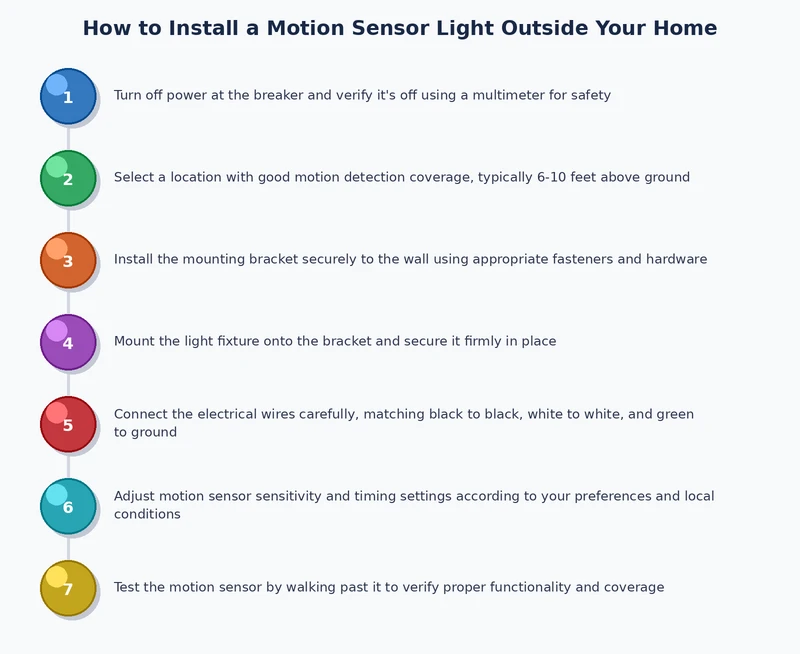

The first and most critical step is cutting power to the circuit at the breaker panel, then confirming the circuit is dead using a non-contact voltage tester before touching any wires. Working on a live circuit is genuinely dangerous, and our team treats this confirmation step as non-negotiable on every installation regardless of experience level. With power confirmed off, the old fixture or junction box cover can be removed to expose the wiring behind the wall.
Most wired motion sensor lights connect via three wires: black (hot), white (neutral), and green or bare copper (ground). Matching wire to wire and securing each connection with a weatherproof wire nut is the core of the electrical work, and double-checking each connection before tucking wires into the box prevents troubleshooting headaches once the power is restored. The fixture then mounts to the bracket with the included hardware, the canopy gets seated flush against the wall surface, and silicone caulk seals the entire perimeter against moisture intrusion.
After restoring power, the sensor requires calibration — typically via a sensitivity dial and a duration dial located under a small removable cover on the sensor head itself. Our team sets sensitivity to the midpoint initially and adjusts after observing a few nights of real-world operation to account for local traffic and wildlife. Aiming the sensor head downward at approximately a 45-degree angle from the mounting height covers the intended detection zone without picking up street traffic or neighboring activity. Anyone interested in pairing this project with broader outdoor improvements will find our guide on sealing a wood deck useful for tackling the surrounding area in the same session.
Front doors, side gates, and driveway approaches represent the highest-value placement locations because they are the points most people — and most would-be intruders — approach after dark. A dual-head floodlight mounted 8 to 10 feet above the entry point casts shadow-free coverage across the widest possible zone, which is the placement our team defaults to when evaluating a new property layout. Motion-triggered lighting at entry points also serves a purely practical purpose: groceries, packages, and late-arriving guests all benefit from a path that illuminates itself without requiring anyone to fumble for a switch in the dark. For properties with more elaborate setups, pairing motion sensor fixtures with smart switching controls — a topic our smart bulb vs. smart switch comparison covers thoroughly — adds scheduling and remote-control capability to the system.
Side yards and detached garages are the locations most people overlook despite being statistically common points of unauthorized entry in residential neighborhoods. A motion sensor light mounted under a garage eave or at the corner of a side-yard fence line illuminates exactly the spaces that traditional porch lights leave in shadow. Our team has found consistently that a single well-aimed fixture in these locations delivers more deterrent value per dollar than adding multiple decorative lights at the front of the property. Solar fixtures work adequately in open side yards with good southern exposure, and our in-depth review of whether solar landscape lights are worth the investment covers the seasonal trade-offs in detail.
One of the most common complaints our team encounters is that a motion sensor light triggers constantly — every passing car, every stray cat, every gust of wind rattling a nearby shrub. The fix is almost always a sensitivity adjustment rather than a fixture replacement, which is good news because it costs nothing and takes under five minutes. Most quality PIR sensors include a Lux dial that prevents triggering during daylight hours, along with a sensitivity dial that narrows the heat-signature threshold required for activation. Starting sensitivity at the lowest setting and increasing it incrementally over several nights is the reliable calibration method for any fixture in any environment. Wedge mounts and directional shields can further narrow the detection angle if the light sits directly adjacent to a busy public sidewalk or street.
Many people assume solar-powered motion lights stop working reliably in winter, and while performance does decline, the drop is often overstated by people who have experienced panel shading rather than genuine cold-weather limitations. A fixture with a high-capacity lithium battery and an efficient monocrystalline solar panel maintains functional activation throughout the year in most North American climates, provided the panel receives at least four hours of direct sunlight daily. The failure scenario our team encounters consistently is not cold temperatures but a tree branch that casts shadow only during winter months when the sun sits lower on the horizon, which repositioning the panel or trimming the obstruction resolves immediately without any rewiring.
Wired motion sensor lights involve working with household electrical circuits, so shutting off the breaker and confirming the circuit is dead with a voltage tester is essential — but the actual wire-connection work is within reach of most careful DIYers. Plug-in and solar models require no electrical work at all. Anyone uncomfortable working inside a junction box should hire a licensed electrician; the labor cost for a single fixture swap is typically modest.
Our team recommends mounting wired floodlights between 8 and 10 feet above the ground for most residential entry points and driveways. This height positions the sensor above the dead zone that PIR sensors experience directly below the unit while still covering a wide horizontal detection area. Soffit installations that sit lower than 7 feet tend to trigger on pets far more frequently than fixtures mounted at the recommended height.
In most cases, yes. Screw-in motion sensor adapters fit inside a standard medium-base socket and convert any outdoor fixture into a motion-activated one without touching any wiring at all. The detection angle and sensitivity range are more limited than a dedicated fixture, but screw-in adapters are a practical option when replacing the full fixture is not feasible or budget is a constraint.
Most fixtures ship with a default duration between 1 and 5 minutes, which suits the majority of residential entry-point applications. The duration dial on the sensor head allows adjustment from as short as 5 seconds — useful for low-traffic pathway lights — to as long as 20 minutes for areas where sustained illumination is preferred. Our team defaults to 3 to 5 minutes for driveway fixtures and 1 to 2 minutes for side-yard installations as a reliable starting configuration.
Any fixture rated IP65 or higher is fully sealed against water jets and dust ingress, making it suitable for all standard outdoor weather conditions including heavy rain, sleet, and moderate ice accumulation. Cold temperatures actually improve PIR sensor accuracy because the thermal contrast between body heat and the ambient air is greater, which reduces false negatives rather than causing problems. Our team avoids any fixture rated below IP44 for permanent outdoor installation regardless of the local climate.
Most wired motion sensor floodlights include an override mode that keeps the fixture on continuously, typically activated by flipping the wall switch off and back on within a few seconds. This mode is electrically safe, but it negates energy savings and can shorten LED driver lifespan when used for extended periods of weeks at a time. Our team recommends using override mode only for temporary situations such as outdoor gatherings, then returning the fixture to motion-activated mode immediately afterward.
Installing an outdoor motion sensor light is one of those projects where the payoff — in security, convenience, and energy savings — is immediate and lasting, and our team encourages anyone who has been putting it off to choose a fixture, gather the tools, and commit to a single focused afternoon. Start with the highest-traffic entry point on the property, use that first installation as a calibration baseline, and build outward from there. Browse the full outdoor security lighting section for guidance on turning a single fixture into a coordinated lighting strategy that covers the whole property.
 |
 |
 |
 |
