Knowing how to choose outdoor flood light fixtures correctly comes down to three core factors: lumen output, beam angle, and IP ingress rating. Everything else is secondary. For homeowners who have already tackled outdoor ambiance — perhaps after setting up string lights on a patio or balcony — flood lights represent a more permanent, security-oriented layer that demands methodical evaluation before purchase.
Flood lights serve multiple distinct purposes in a residential context: perimeter security, pathway and driveway visibility, architectural accent illumination, and functional task lighting for garages, workshops, or carports. Installing the wrong fixture results in wasted energy, unwanted light trespass into neighboring properties, and premature failure from inadequate weather resistance. The right selection operates reliably across seasons with minimal intervention.
Buyers encounter a wide spectrum of flood light options spanning LED, halogen, solar, and motion-activated technologies across dozens of form factors and price points. This guide provides direct selection criteria matched to specific real-world applications, eliminating the guesswork that leads to costly returns and repeat installations.
Contents
The most common purchasing error is selecting a flood light based on wattage alone, without accounting for the specific zone it must serve. Each outdoor zone carries distinct illuminance requirements measured in foot-candles (fc) or lux. Establishing zone requirements before evaluating any fixture specification is the non-negotiable first step in any competent selection process.
Entryways require a minimum of 50 lux at ground level; most security-conscious installations target 100–150 lux. Key selection criteria for this zone:
Dual-head fixtures on a single junction box are the preferred choice for wide driveways — two independently adjustable heads eliminate the shadow zones that single-emitter designs create at oblique mounting angles.
Perimeter flood lights must cover larger areas — side yards, rear fence lines, and garage exteriors — where deterrence is the primary function. According to the U.S. Department of Energy, LED flood lights consume up to 75% less energy than halogen equivalents while delivering equivalent or superior lumen output at comparable fixture prices.
Flood lights used for architectural uplighting, tree washing, or feature illumination operate at far lower outputs than security fixtures. Over-illumination is as problematic as under-illumination in this zone — it destroys the intended aesthetic effect and creates unwanted sky glow.
Understanding how to choose outdoor flood light products means reading technical datasheets with confidence. The specifications below are genuine performance differentiators — not marketing shorthand.
Manufacturers frequently list wattage as the primary headline figure. Ignore it. Lumen output (lm) is the only valid measure of light quantity. Efficacy — lumens per watt (lm/W) — determines energy efficiency. Quality LED flood lights achieve 100–160 lm/W. Anything below 80 lm/W indicates a substandard driver or LED array and should be rejected regardless of price.
Beam angle directly controls the illuminated footprint at a given mounting distance. The relationship is inverse: narrower angles concentrate lumens into a smaller area, producing higher surface illuminance. Use this reference table when matching fixtures to zones:
| Beam Angle | Classification | Best Application | Approx. Coverage Diameter at 10 ft |
|---|---|---|---|
| 10°–25° | Spot | Flagpoles, sculptures, tree uplighting | 2–4 ft |
| 30°–45° | Narrow flood | Wall washing, accent features | 5–8 ft |
| 60°–90° | Medium flood | Entryways, garage facades | 12–18 ft |
| 100°–120° | Wide flood | Driveways, open yards | 20–30 ft |
| 150°–180° | Very wide flood | Perimeter coverage, parking areas | 35+ ft |
Color temperature (CCT) is measured in Kelvin. The practical selection range for outdoor flood lights spans 2700K–6500K:
CRI (Color Rendering Index) matters primarily for landscape and decorative applications. CRI 80 is acceptable for pure security use. CRI 90+ is required when color fidelity is relevant — flowering plants, painted facades, and patterned stonework all benefit significantly from high-CRI sources. Budget fixtures rarely disclose CRI prominently; treat undisclosed CRI as CRI 70 or below.
The IEC 60529 Ingress Protection (IP) standard defines resistance to solid particles and liquids. For outdoor flood lights, IP65 is the minimum viable rating. The two digits indicate:
Fixtures installed in regions with heavy rainfall, coastal salt air, or adjacent to hardscape surfaces that receive regular high-pressure maintenance — such as driveways cleaned with the methods detailed in a standard pressure washing routine — require IP66 or IP67 as the correct minimum, not IP65. IK ratings (IEC 62262) quantify impact resistance; IK08 or higher is appropriate for fixtures in traffic-adjacent or vandalism-prone locations.
Correct preparation eliminates mid-installation delays and reduces safety incidents. All hardwired outdoor electrical work must comply with local codes; most jurisdictions require either a licensed electrician or a homeowner permit for new outdoor circuit installations.
Standard toolkit for a hardwired outdoor flood light installation:
Solar flood lights eliminate wiring requirements but introduce panel placement constraints. The photovoltaic panel requires unobstructed southern exposure (Northern Hemisphere) of at least 6 peak sun hours per day to maintain full battery charge through extended cloudy periods. Installations in heavily shaded lots are not good candidates for solar-powered flood lights regardless of rated battery capacity.
LED flood lights require significantly less maintenance than their halogen predecessors, but zero-maintenance expectations are incorrect and will lead to premature performance degradation. Consistent care directly extends rated service life — typically 25,000–50,000 hours — and prevents the gradual lumen depreciation that goes unnoticed until output has dropped substantially below rated specification.
Outdoor lenses accumulate dust, insect deposits, mineral staining from hard water, and UV-driven surface oxidation — all of which reduce transmitted light output measurably. Cleaning procedure:
Bi-annual inspection — spring and autumn — is the correct maintenance cadence for most temperate climates:
Fixtures mounted beneath or adjacent to deciduous trees require more frequent lens cleaning than the bi-annual schedule — sap, pollen, and decomposing organic debris accumulate rapidly on horizontal or upward-facing lens surfaces and cause substantially greater output loss per season than fixtures mounted on clean exterior walls.
The decision to replace or repair an outdoor flood light is not purely economic. Fixture age, technology generation, parts availability, and failure pattern all factor into the correct decision. Repair-first instincts are reasonable for well-built commercial-grade fixtures; they are counterproductive when applied to low-cost integrated designs where individual components are non-serviceable.
Full replacement is the correct decision in these scenarios — repair is not a viable alternative:
The following conditions are field-repairable and do not justify full fixture replacement on well-specified units:

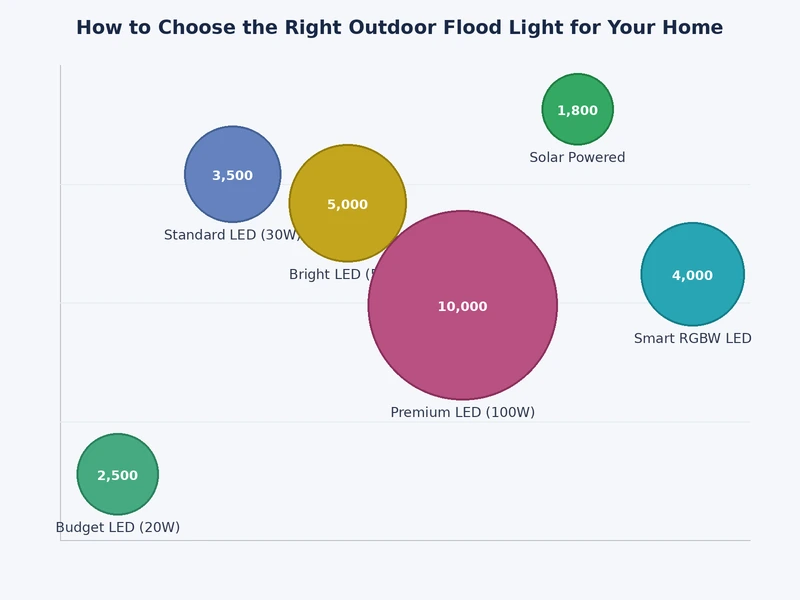

The correct lumen range depends entirely on the application zone. Driveways and entryways require 2,000–5,000 lm. Perimeter security zones spanning 30–50 feet need 5,000–10,000 lm. Landscape accent lighting operates effectively at 500–2,500 lm. Wattage is an unreliable proxy for output — lumen output must always be confirmed directly from the fixture photometric datasheet.
IP65 is the minimum acceptable rating for any exposed outdoor installation. Fixtures subject to high-pressure water jets, coastal salt-laden air, or locations adjacent to surfaces that receive regular pressure cleaning should carry IP66 or IP67. IP44 and IP54 ratings — which some budget fixtures advertise with outdoor-oriented branding — are insufficient for genuine year-round outdoor exposure.
Yes, without qualification. LED flood lights deliver 100–160 lm/W efficacy versus 15–25 lm/W for halogen and 75–100 lm/W for the best metal halide HID sources, with LED rated service lives of 25,000–50,000 hours versus 2,000–4,000 hours for halogen. The capital cost premium for quality LED over halogen is fully recovered within one to two seasons through energy savings alone. Halogen and HID technologies are obsolete for residential outdoor flood light applications.
4000K–5000K neutral to cool white delivers the best luminous contrast for security applications and measurably improves facial recognition accuracy on surveillance camera systems. Warmer temperatures (2700K–3000K) are preferred for residential aesthetics but produce lower perceived brightness and reduced contrast at equivalent lumen outputs. For zones that must balance both security function and front-of-house aesthetics, 4000K is the definitive compromise.
Dusk-to-dawn flood lights are specifically designed and thermally rated for continuous operation duty cycles. Motion-activated flood lights are not — operating a PIR-triggered fixture in forced continuous-on mode reduces driver service life and typically voids manufacturer warranties. For all-night illumination requirements, dusk-to-dawn photocell models or smart controls with configurable time schedules are the correct specification, not motion-triggered fixtures overridden to stay on.
Quarterly cleaning is the correct standard interval for most residential installations in clean suburban environments. Fixtures near trees, in coastal zones, or adjacent to unpaved driveways and soil surfaces require monthly cleaning. Contaminated lenses reduce effective delivered lumen output by 10–30% depending on deposit type and density. UV-stabilized polycarbonate and tempered glass lens materials resist yellowing significantly better than standard polycarbonate — specifying these materials at purchase eliminates a common long-term degradation pathway.

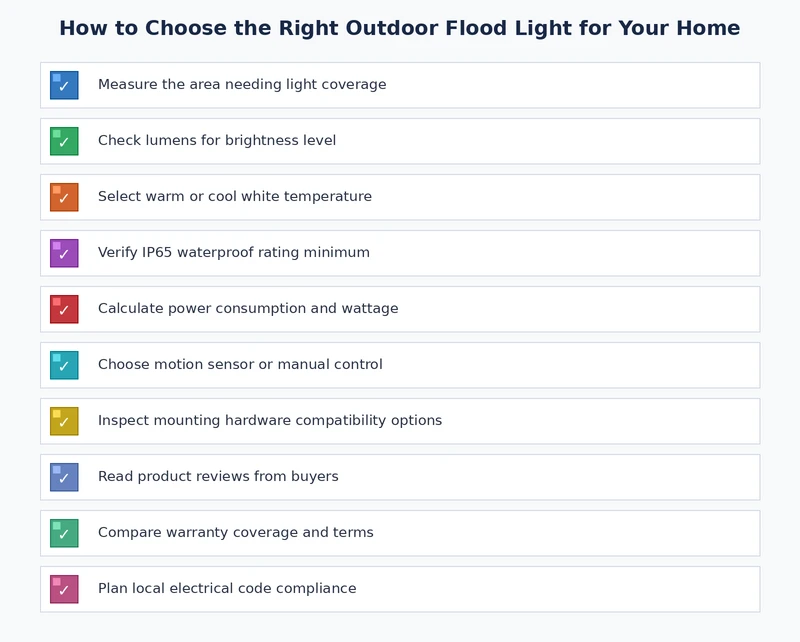

Selecting the correct outdoor flood light is a direct process when approached with the right framework: define the zone, establish the required lumen output and beam angle, verify the IP rating against local weather conditions, and confirm color temperature suits the application. Browse the full range of fixtures in the outdoor lighting category and use the beam angle and specification tables in this guide as a reference at the point of purchase — the investment made in pre-purchase specification accuracy translates directly into years of reliable, energy-efficient performance without repeat installations.
 |
 |
 |
 |
