Flood Beam vs Spot Beam vs Throw: Flashlight Beam Types

Studies on emergency response find that more than 60 percent of flashlight owners select the wrong beam type for their primary use case — a figure consistent across consumer surveys and first-responder training programs alike. Understanding flashlight beam types — flood, spot, and throw — is the starting point for any serious lighting decision. These are distinct optical behaviors, not interchangeable marketing labels. Getting beam selection right means choosing a light that performs in the field rather than one that impresses in a store demo. For anyone building a reliable emergency flashlight kit, beam geometry is the first variable to lock in.

A flood beam disperses light across a wide angle, trading intensity for area coverage. A spot beam narrows that cone, concentrating output and extending usable range. Throw — often confused with raw brightness — describes how far a beam carries meaningful illumination. It is determined by peak intensity measured in candela, not by the lumen number printed on the packaging. Most buyers read only lumens, which explains why flashlights so often underperform the moment they leave the store.

Beam performance is measurable and standardized. A flashlight rated at 50,000 candela projects usable light over 447 meters. One rated at 1,000 candela reaches approximately 63 meters. These figures follow the ANSI/NEMA FL1 standard, which defines how throw distance, lumen output, and run time are measured and reported. For tested picks across all three beam types, browse the flashlights category.

The Physics Behind the Beam

How Optics Shape Light Output

Every flashlight beam originates at the LED emitter — a small chip that radiates light in all directions simultaneously. The optic system determines what happens to that light before it exits the lens. A smooth, deep parabolic reflector gathers raw emission and redirects it forward in a concentrated cone. A wider, shallower reflector spreads that same emission across a broader angle. The geometry of the reflector is the single biggest determinant of beam shape, fixed at the manufacturing stage with no field adjustment possible.

Beam angle is the critical metric. Angles below 10 degrees produce tight, high-intensity spots with strong throw capability. Angles between 30 and 60 degrees generate the wide, even coverage characteristic of flood beams. Many production flashlights use hybrid optics that create a bright central hotspot surrounded by a softer spill zone. This design attempts to capture the advantages of both beam types, with effectiveness depending heavily on the specific emitter and reflector combination used.

Reflectors vs. Lenses

Smooth aluminum reflectors produce the narrowest, highest-intensity beams. Orange peel (OP) reflectors — named for their textured surface — scatter the hotspot into a softer, more uniform output. The tradeoff is direct: OP reflectors reduce peak intensity in exchange for a more pleasant, artifact-free beam. Smooth reflectors maximize candela but make optical imperfections visible as rings or dark halos around the hotspot.

Lens-based systems, called total internal reflection (TIR) optics, give manufacturers precise control over beam geometry. TIR lenses are common in headlamps and area lights. They excel at producing clean, consistent flood output. Reflector-based designs still dominate in high-throw flashlights because no TIR lens yet replicates the candela output of a well-tuned smooth reflector. The depth-to-diameter ratio of a reflector also matters — deeper reflectors with smaller openings produce tighter beams, which is why throw-optimized flashlights are longer and narrower than flood-oriented designs.

Pro insight: When evaluating throw flashlights, examine the reflector surface directly. A mirror-like smooth finish is a reliable indicator of high candela output. Textured or orange peel finishes signal a design compromise toward flood coverage and softer hotspot rendering.

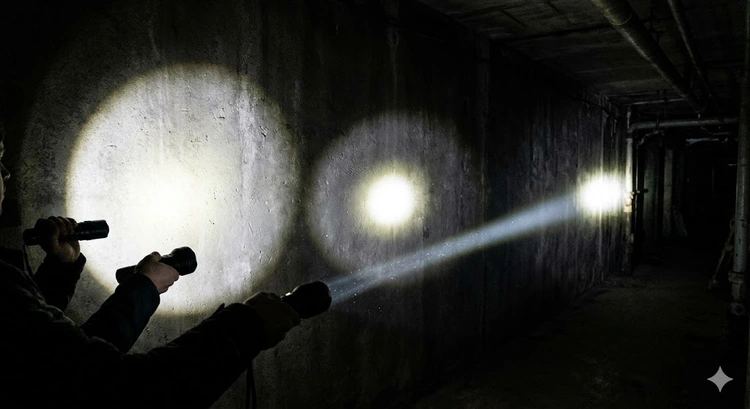

Flood vs. Spot vs. Throw: Flashlight Beam Types Compared

Flood Beam

Flood beams are defined by wide angles — typically 60 degrees or more. They distribute lumens broadly rather than concentrating them. The result is even, shadow-free illumination across a large area at short to medium range. Flood beams are the correct choice for any task where peripheral visibility matters: tent interiors, vehicle engine bays, utility rooms, close-quarters search work.

The common criticism of flood beams is that they feel dim compared to spot beams. This is a perceptual artifact, not a power difference. Flood beams spread the same lumens across a wider area, reducing perceived brightness at any single point while total light output remains unchanged. Mechanics, electricians, and maintenance professionals who work in confined spaces consistently report that wide flood beams reduce eye strain over extended sessions. The absence of harsh shadows and the ability to see the full workspace without repositioning the beam make flood-oriented designs the professional default in those environments.

Spot Beam

Spot beams concentrate output into a tight cone, typically between 8 and 20 degrees. This concentration increases apparent brightness in the beam center and extends usable throw distance significantly. Spot beams sacrifice peripheral illumination entirely — objects outside the cone are invisible to the user. That tradeoff is acceptable when the task is directional: trail running, wildlife observation, scanning a defined zone.

Spot beams also create a perceptual effect worth understanding. The high-contrast center makes surrounding darkness feel deeper and more absolute. In a patrol or security context, this tunnel-vision effect can become a liability. Users trained in situational awareness often prefer hybrid beams for exactly this reason. Knowing how many lumens a specific task actually requires helps clarify when a spot beam adds genuine value versus when it merely creates harsh glare in confined quarters.

Warning: Using a tight spot beam indoors or at close range creates intense glare and disorienting shadows. For any confined space under 10 feet deep, a flood beam is the correct choice without exception.

Throw and Distance Performance

Throw is the maximum distance at which a beam provides 0.25 lux of illumination — roughly equivalent to the ambient light of a full moon at ground level. The governing formula is straightforward: throw distance in meters equals two times the square root of the candela rating. A flashlight producing 10,000 candela throws approximately 200 meters. One producing 200,000 candela reaches nearly 900 meters.

Throw-optimized flashlights are recognizable by their deep, narrow reflector cups and high-bin LED emitters. They are not general-purpose tools. Specific use cases justify their design: search and rescue, wildlife observation, security patrol, and long-range identification scenarios. Battery chemistry also shapes throw performance in measurable ways. High-drain 18650 cells sustain peak output significantly longer than AA configurations — the performance gap between cell types is documented thoroughly in a dedicated battery comparison for high-drain flashlights, and the difference is most consequential in throw applications where sustained current delivery is the binding constraint.

Five Myths About Flashlight Beams, Corrected

Myth 1 — More Lumens Always Means More Throw

Lumens measure total light output in all directions. Candela measures intensity in a specific direction. A 500-lumen flood beam outshines a 3,000-lumen throw light inside a closet, but it disappears in open terrain beyond 30 meters. The throw light concentrates its candela into a narrow cone where total lumen output is nearly irrelevant to long-range performance. The distinction matters every time a comparison is made based on lumen claims alone.

Two flashlights with identical LED emitters but different reflector designs can produce vastly different throw results. The reflector concentrates or disperses energy — lumen output stays constant while candela shifts dramatically based on beam angle. This is why reflector selection matters as much as raw LED power, and why manufacturers who advertise only lumens are providing an incomplete picture. Any serious throw comparison demands candela data, not lumen counts.

Myth 2 — Flood Beams Are Underpowered

Flood beams are not weak. They are optimized for a different task. A 2,000-lumen flood beam illuminates a garage interior comprehensively. A 2,000-lumen spot beam in that same garage creates a blinding center point while leaving the periphery dark. Power is identical — utility diverges completely based on beam geometry alone.

The confusion stems from comparing perceived center brightness, which flood beams always lose in a direct side-by-side test. Evaluating beams by task suitability rather than apparent center intensity produces more accurate assessments. Flood beams dominate in close-range utility, indoor work, and any scenario where wide, even coverage is the actual performance requirement.

Tip: Before evaluating any flashlight's performance, define the task first. Indoor work demands flood coverage area as the primary metric. Outdoor navigation demands candela and throw distance.

Selection Errors That Undermine Performance

Matching Beam Type to Task

The most common selection error is choosing a throw-optimized flashlight for general household use. These lights are engineered for long-range identification. In normal indoor or close-range contexts, they produce hot spots, harsh shadows, and visual discomfort. Buyers purchase them because high candela numbers and dramatic beam photos imply superiority. In practice, a purpose-matched flood or hybrid beam outperforms them in the environments where most people actually use flashlights.

The selection error most difficult to self-diagnose is buying a zoom or adjustable-beam flashlight expecting it to replace two purpose-built tools. Zoom flashlights trade optical efficiency for versatility. In flood position, they rarely match a dedicated flood beam. In spot position, they rarely match a dedicated throw light. Precision optics lose efficiency when mechanically reconfigured. Purpose-built designs win every time performance is the actual priority.

Overlooking Beam Angle Specifications

Beam angle is rarely the featured specification on flashlight packaging, yet it is the most predictive variable for real-world utility. A 15-degree beam and a 60-degree beam at identical lumen output perform differently in nearly every context. The 15-degree beam illuminates a circle approximately 8 feet wide at 30 feet. The 60-degree beam covers roughly 35 feet wide at that same distance. These are not marginal differences — they define entirely different use scenarios.

Buyers who skip beam angle data and purchase on lumens alone consistently report that flashlights feel wrong for their tasks without being able to articulate why. Reading the beam angle specification takes seconds and prevents mismatches that no amount of raw brightness can compensate for. Flashlight product listings that omit beam angle entirely are worth approaching with skepticism.

Diagnosing Common Beam Problems

Hotspot Artifacts and Ring Effects

A visible dark ring surrounding the central hotspot is not a defect in most cases. It is the natural byproduct of reflector geometry — the optical transition zone between the focused center and the surrounding spill. Smooth reflectors produce this artifact more visibly than OP reflectors. The ring becomes distracting when the beam is projected onto a flat surface at close range, but it is nearly invisible in open environments where the beam operates at its intended distance.

When a ring or artifact worsens progressively over time, the cause is almost always physical — a shifted or dirty lens, a displaced LED emitter, or accumulated debris on the reflector surface. Cleaning the lens with a microfiber cloth resolves most minor cases. Reflector damage from impact or heat exposure requires component replacement and is not field-serviceable in most consumer designs.

When Throw Distance Drops Unexpectedly

Throw distance degrading well before expected runtime ends is typically a battery output problem. High-intensity throw beams draw heavy current continuously. When battery voltage sags under sustained load, the driver circuit reduces power to protect the LED, and throw distance degrades visibly. This phenomenon is most common with alkaline batteries in high-drain applications. Switching to high-drain lithium cells or rechargeable 18650 configurations resolves most cases of premature throw degradation.

Battery consistency matters more in throw lights than in flood designs. Because throw performance scales directly with peak current delivery, any voltage sag has an amplified effect on beam intensity. Users who rely on throw flashlights for serious applications should standardize on one battery chemistry and rotate cells on a defined schedule. A secondary cause is thermal throttling — most modern flashlights reduce output automatically when the head temperature exceeds a set threshold. For environments where moisture or temperature extremes are a factor, reviewing the IPX waterproof ratings for flashlights clarifies which environmental tolerances a specific model can sustain without triggering output reduction.

The beam type determines whether a flashlight is useful — the right lumen count only determines whether it is bright enough to succeed at the task the beam was chosen for.
